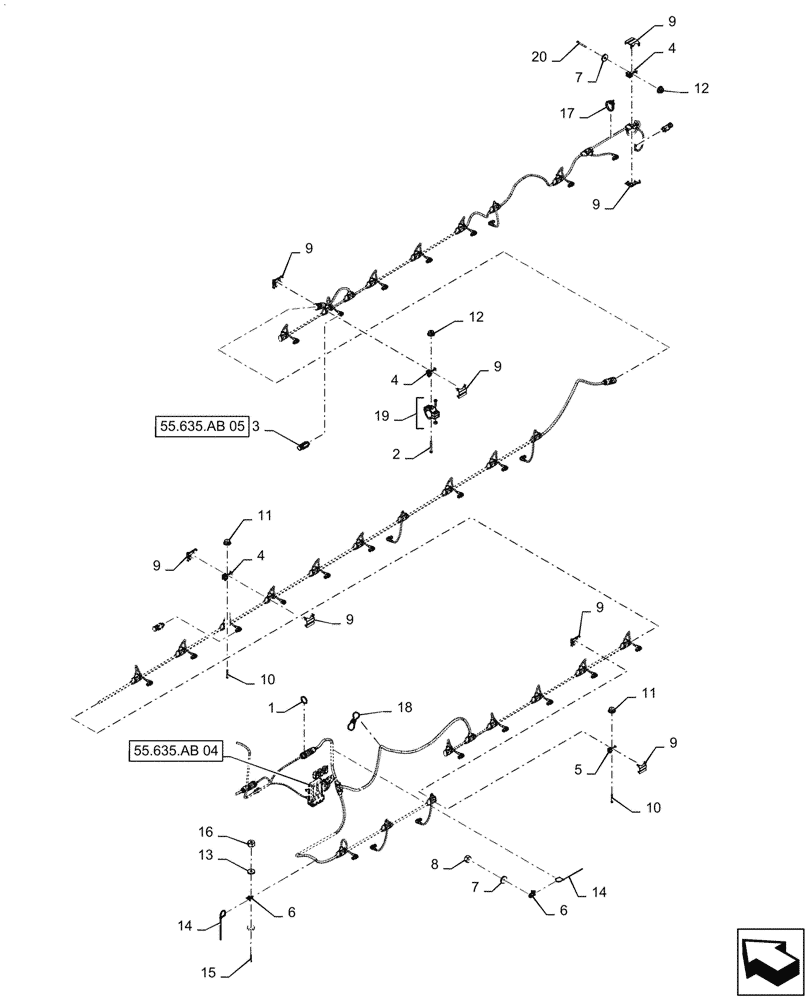

Запчасти Case IH PATRIOT 4440 (78.110.AM[06.3]) - ACF HARNESS MOUNTING DETAILS (78) - SPRAYING

1

87271930

NUT

Plastic Panel

4шт.

2

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

Used with Saddle Mounts

6шт.

3

47997922

NOZZLE

Nozzle Control Valve, Arag

54шт.

4

48002463

BLOCK

Harness Mount, 2 Way, ACF

53шт.

5

48010222

BLOCK

Harness Mount, One Way, ACF

5шт.

6

84474186

BASE

Tie

6шт.

7

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

10шт.

8

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

9

48002468

CLAMP

Harness Mount, ACF, 2 Req

116шт.

10

48072787

BOLT

M6 x 25, used with ARAG Nozzles

48шт.

11

48072786

NUT

M6 Flange, used with ARAG Nozzles

48шт.

12

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

10шт.

13

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

11шт.

14

BN570007

STRAP

14" Zip Tie

8шт.

15

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

16

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

7шт.

17

84551467

CABLE TIE,381mm L

With Fir Tree

5шт.

18

47853521

CABLE TIE

Dual Dividing

2шт.

19

48020180

BODY

Saddle, Blank, ARAG

6шт.

20

BN50234

BOLT,5/16"-18 X 1-1/4", Stainless Steel

Boom Deflector Mounting

4шт.
