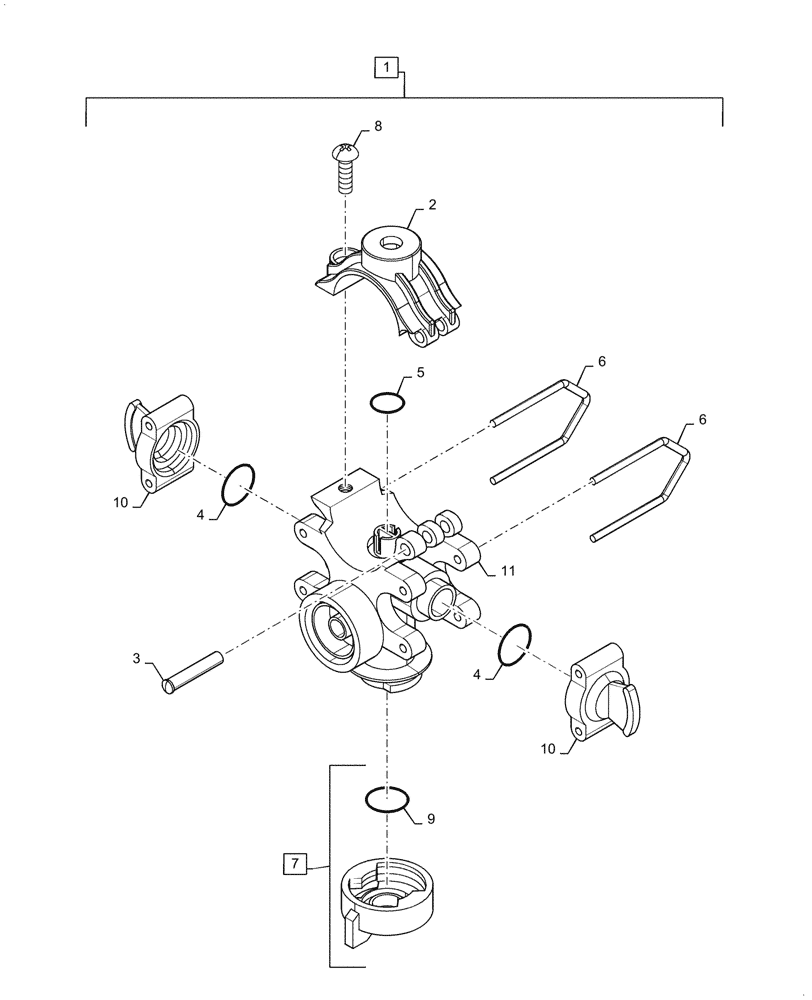

Запчасти Case IH PATRIOT 4440 (78.110.AM[01.1]) - WILGER INTEGRATED SADDLE / NOZZLE BREAKDOWN, ASN YGT044000 (78) - SPRAYING

1

48020190

BODY

Wilger Integrated Saddle Nozzle, Complete, Incl 2 - 11

1шт.

2

48020191

CLAMP

Hinged

1шт.

3

84497832

PIN,#10 X 5/8" Philips

Saddle Hinge Pin

1шт.

4

84153115

O-RING,0.484" ID x 0.139" Width

Buna N, #206

2шт.

5

236535

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

Buna N, #110

1шт.

6

84153117

LOCK,U-Clip 302SS

U Clip

2шт.

7

84244013

PLUG,Plug,Cap-Black,w/ O-ring

Cap Plug, Combo-Jet

1шт.

8

48028411

SCREW

#10

1шт.

9

8408

O-RING,13 mm x 3 mm

Nozzle Seal Combo-Jet

1шт.

10

87718926

PLUG,Adapter

Adapter, Combo-Clip And Plug

2шт.

11

84497843

SADDLE,1" Pipe, 3/8" Inlet

CRII Hinged Saddle Body

1шт.
