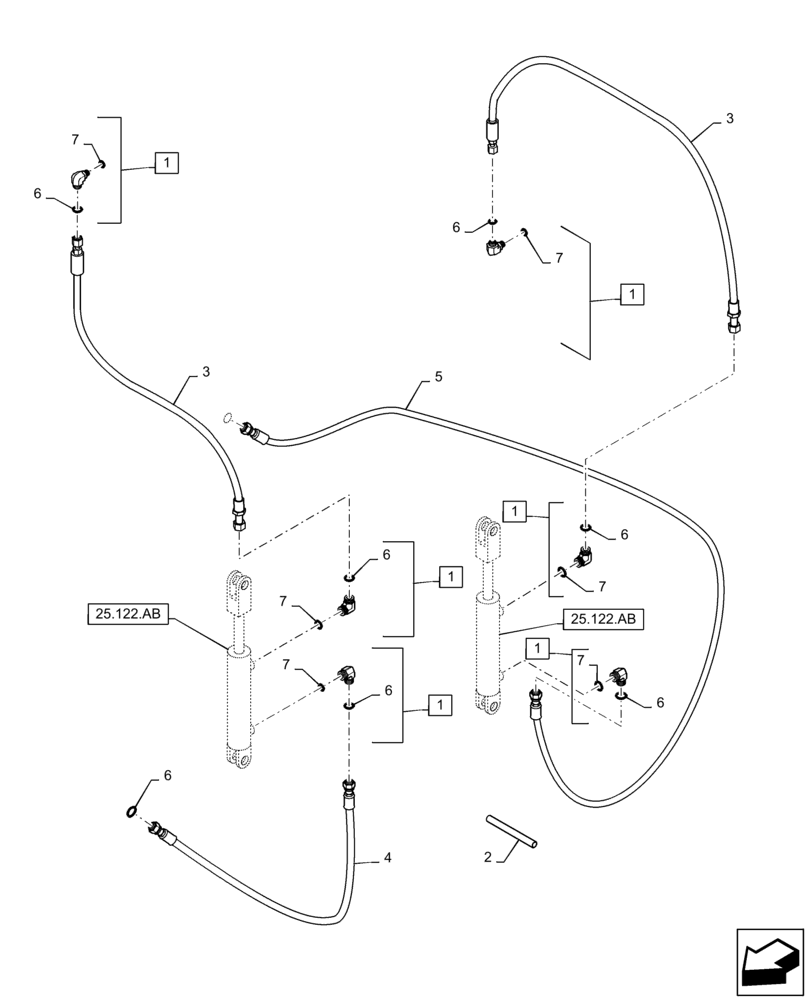

Запчасти Case IH PATRIOT 4440 (25.122.AD[01]) - ACTIVE SUSPENSION LINES, BSN YGT044001 (25) - FRONT AXLE SYSTEM

1

BN302547

90 ELBOW

9/16-18 ORFS x 7/16-20 ORB, Incl 6 - 7

6шт.

2

BN322741

SLEEVE

HOSE, 1.42 ID X 12

2шт.

3

BN313058

HOSE ASSY.

-4 X 139", Active Suspension Cylinder Supply

2шт.

4

BN313061

HOSE,6.35mm ID x 5080mm L, SAE 100R17

-4 X 200", RH Suspension Cylinder To Tank

1шт.

5

BN307828

HOSE ASSY.,6.35mm ID x 4216.4mm L, SAE 100R17

-4 x 166", LH Suspension Cylinder To Tank

1шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

8шт.

7

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

6шт.
