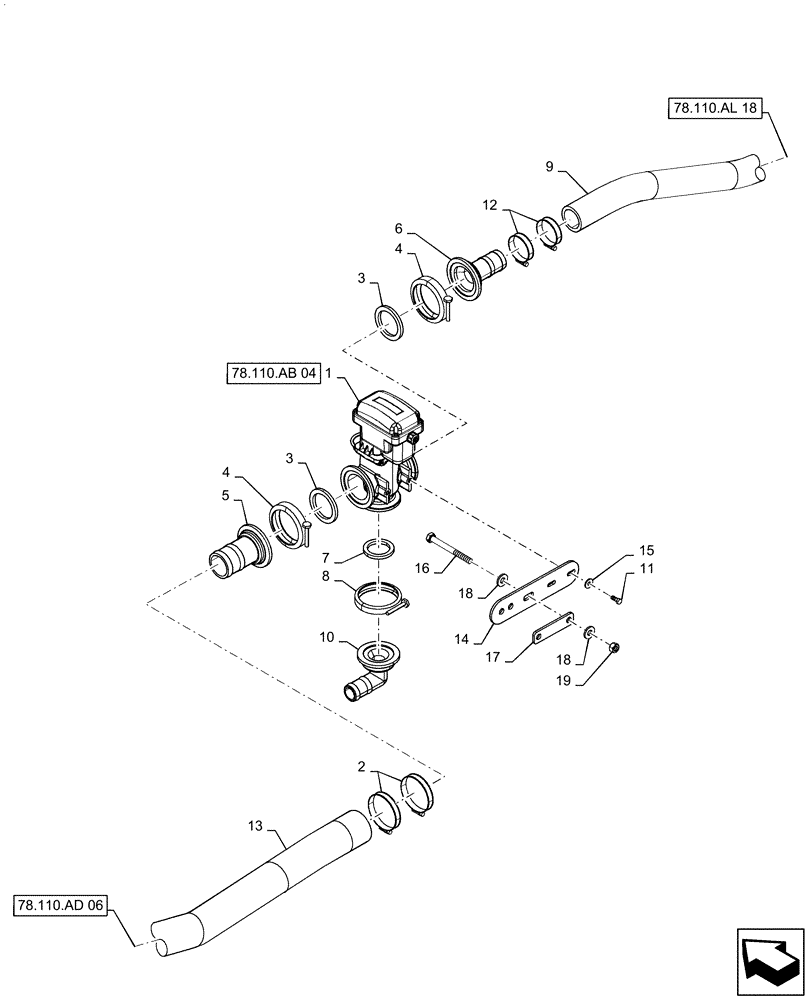

Запчасти Case IH PATRIOT 4440 (78.110.AL[17]) - 120, 7 SECTION, RH INNER BOOM PLUMBING, BSN YGT044001 (78) - SPRAYING

1

87624338

SHUT-OFF VALVE

"T" Style, Plunger, 2" Flange Port x 2" Flange Port x 2" Flange Port

1шт.

See Fig 78.110.AB 04 For Service Parts

1шт.

2

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

4шт.

3

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

2шт.

4

BN313773

CLAMP,2" Full Port

2" Flange

2шт.

5

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange x 2" Hose Barb

1шт.

6

BN322277

FITTING,2" Full Port Flange x 1-1/2" Hose Barb

2" Full Port Flange x 1 - 1/2" Hose Barb

1шт.

7

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

1шт.

8

BN303199

CLAMP,2" Flange

2" Standard Flange

1шт.

9

BN53842

HOSE,38.10 mm ID Bulk

EPDM

1шт.

10

BN303189

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

2" Flange x 1 - 1/4" Hose Barb

1шт.

11

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

2шт.

12

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

13

47687140

HOSE

2", Thick Wall, EPDM

1шт.

14

87625607

MOUNT

Inner Boom Valve

1шт.

15

BN50138

WASHER,1/4", SS

2шт.

16

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

M10 x 100mm, DOR

2шт.

17

87620862

PLATE

Backer, 2 - 1/2" Tube

1шт.

18

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

19

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.
