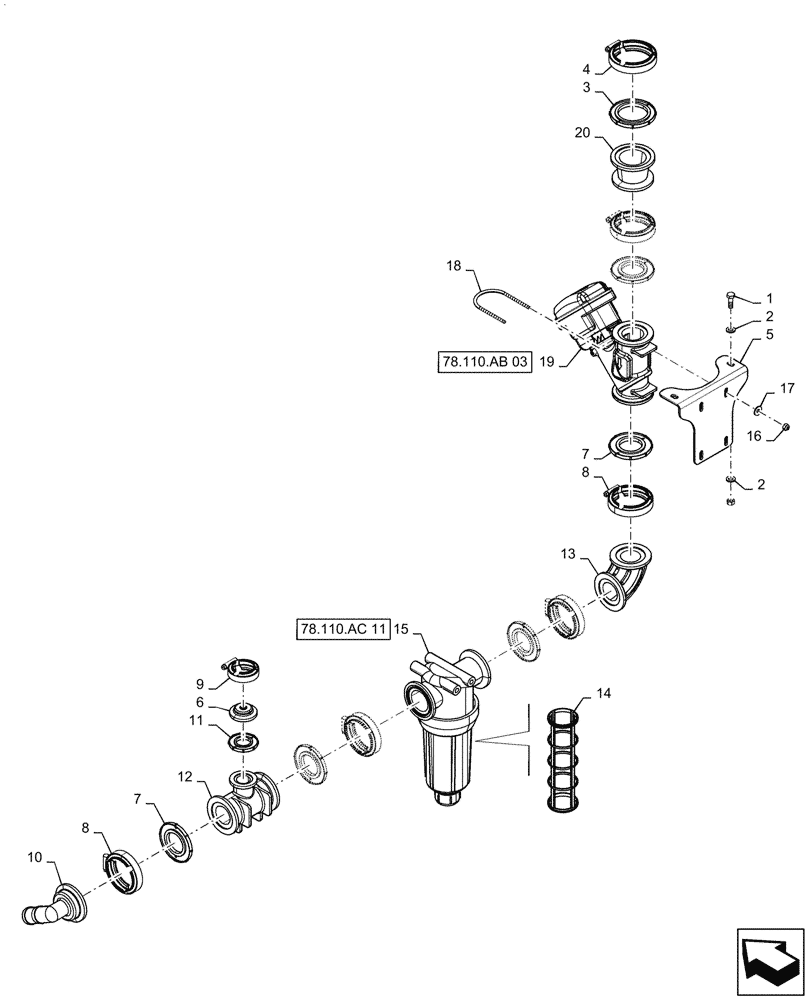

Запчасти Case IH PATRIOT 4440 (78.110.AL[16.1]) - 120, 7 SECTION, CENTER BOOM PLUMBING, ASN YGT044000 (78) - SPRAYING

1

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

2

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

3

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

1шт.

4

BN313773

CLAMP,2" Full Port

1шт.

5

47889240

MOUNT

Valve

1шт.

6

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

1шт.

7

47888705

GASKET

2" Flange, EPDM

2шт.

8

BN303199

CLAMP,2" Flange

5шт.

9

BN303203

CLAMP,1" Flange

1шт.

10

BN303189

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

1шт.

11

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1шт.

12

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

1шт.

13

47776943

FITTING,2" Full Port Flange x Flange Sweep

90°, 2" Flange

1шт.

14

87265491

SCREEN,50 Mesh, SST, Red

1шт.

15

87265489

FILTER STRAINER

Assembly

1шт.

See 78.110.AC 11

1шт.

16

BN55359

LOCK NUT,1/4"-20, SS

4шт.

17

BN50138

WASHER,1/4", SS

4шт.

18

BN303201

U-BOLT

1/4" x 2.38" x 3.75"

2шт.

19

87624339

SHUT-OFF VALVE

"Y" Style, Plunger, 2" Flange Ports

1шт.

See 78.110.AB 03

1шт.

20

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

1шт.
