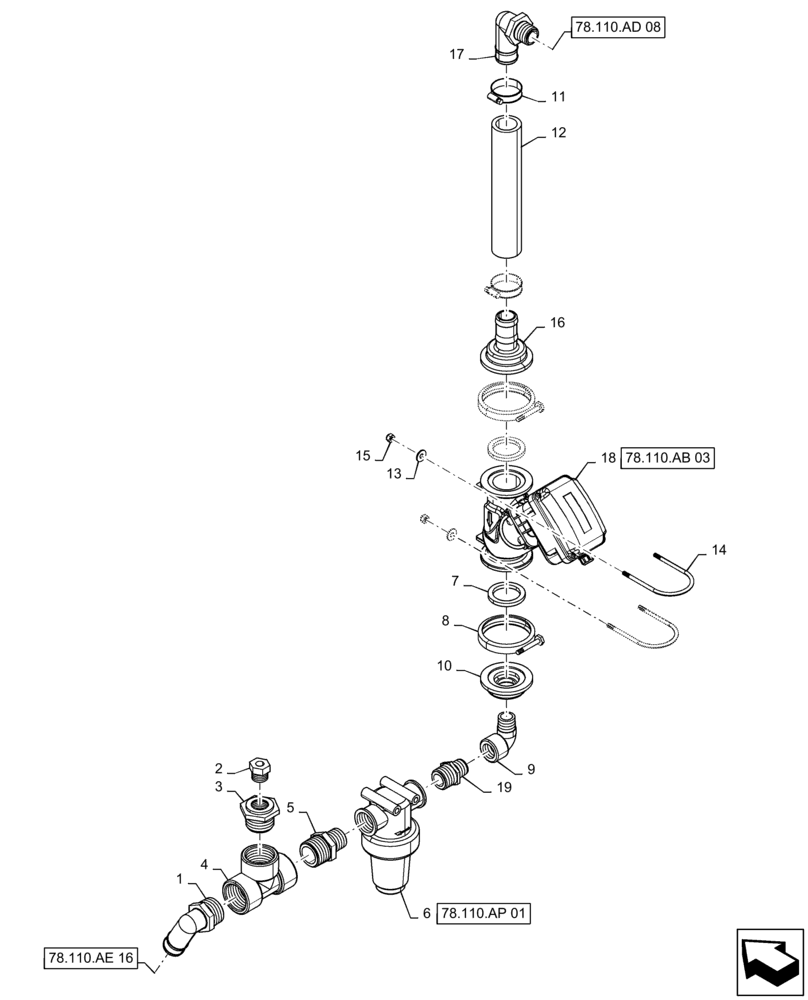

Запчасти Case IH PATRIOT 4440 (78.110.AL[16]) - 120, 7 SECTION, CENTER BOOM PLUMBING, BSN YGT044001 (78) - SPRAYING

1

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1 - 1/4" NPT x 1 - 1/4" Hose Barb, 90°

1шт.

2

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT

1шт.

3

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1 - 1/4" MPT x 3/4" FPT

1шт.

4

BN73662

TEE

1 - 1/4"

1шт.

5

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1 - 1/4" NPT x 1" NPT

1шт.

6

BN320072

FILTER STRAINER

1" NPT, 50 Mesh

1шт.

See Fig 78.110.AP 01 For Service Parts

1шт.

7

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

8

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

9

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

3/4" MPT x 3/4" FPT

1шт.

10

344407A1

PLUG,2" Flange Plug with 3/4" FPT

2" Flange x 3/4" NPT

1шт.

11

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

12

84345284

HOSE,31.8mm ID x 6134mm L

Bulk, 1 - 1/4" ID, EPDM, Cut To Length Of 24'

1шт.

13

BN50138

WASHER,1/4", SS

4шт.

14

BN303201

U-BOLT

1/4" x 2.38" x 3.75"

2шт.

15

BN55359

LOCK NUT,1/4"-20, SS

4шт.

16

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2” Flange x 1 - 1/4" Hose Barb

1шт.

17

BN67315

FITTING,1" Male Thread x 1-1/4" 90 Degree Hose Barb

1" NPT x 1 - 1/4" Hose Barb

1шт.

18

87624339

SHUT-OFF VALVE

"Y" Style, Plunger, 2" Flange Ports

1шт.

See Fig 78.110.AB 03 For Service Parts

1шт.

19

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4"

1шт.
