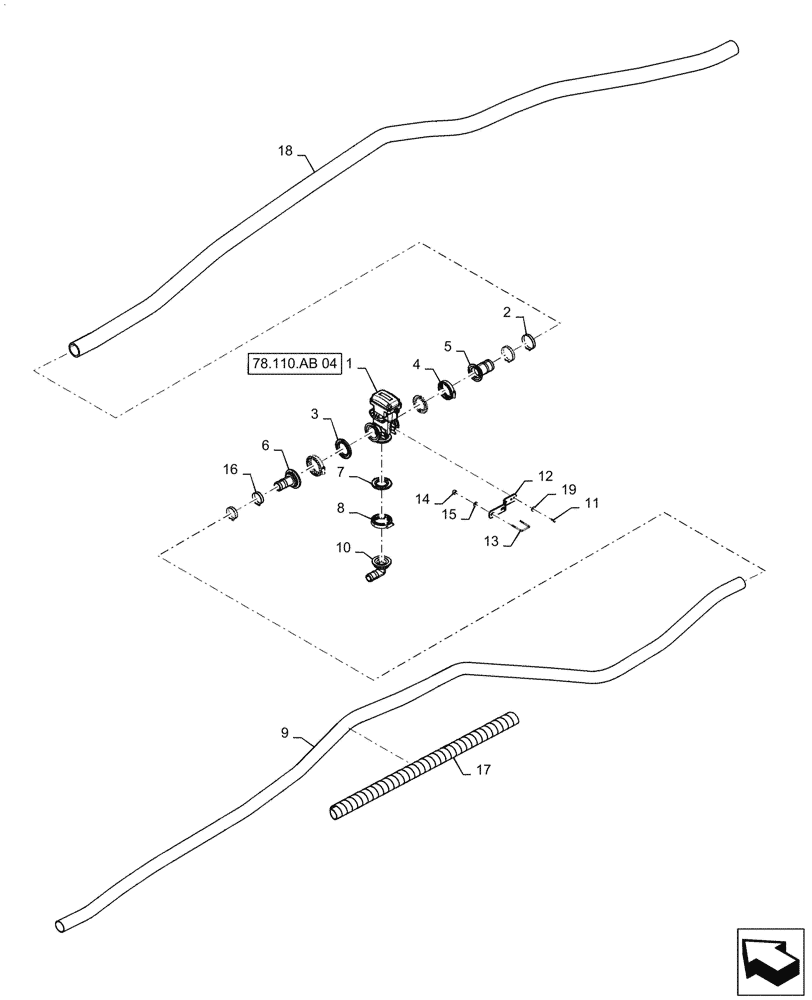

Запчасти Case IH PATRIOT 4440 (78.110.AL[15.1]) - 120, 7 SECTION, LH INNER BOOM PLUMBING ASN YGT044000 (78) - SPRAYING

1

87624338

SHUT-OFF VALVE

"T" Style, Plunger, 2" Flange Port x 2" Flange Port x 2" Flange Port

1шт.

See Fig 78.110.AB 04 For Service Parts

1шт.

2

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

2шт.

3

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

2шт.

4

BN313773

CLAMP,2" Full Port

2шт.

5

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

1шт.

6

BN322277

FITTING,2" Full Port Flange x 1-1/2" Hose Barb

1шт.

7

47888705

GASKET

2" Flange, EPDM

1шт.

8

BN303199

CLAMP,2" Flange

1шт.

9

84345284

HOSE,31.8mm ID x 6134mm L

1 1/4", EPDM, Bulk, 20' Roll

1шт.

10

BN303189

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

1шт.

11

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

2шт.

12

47945077

MOUNT

Boom Valve

1шт.

13

BN313492

U-BOLT

5/16 x 2 1/2" ID

1шт.

14

87343959

NUT,5/16" - 18, GR B, DOR

2шт.

15

87310596

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

16

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

17

84414496

PROTECTOR

Hose Wrap, 38" Long

1шт.

18

47687140

HOSE

2" Thick Wall EPDM, Bulk 17' Long

1шт.

19

BN50138

WASHER,1/4", SS

2шт.
