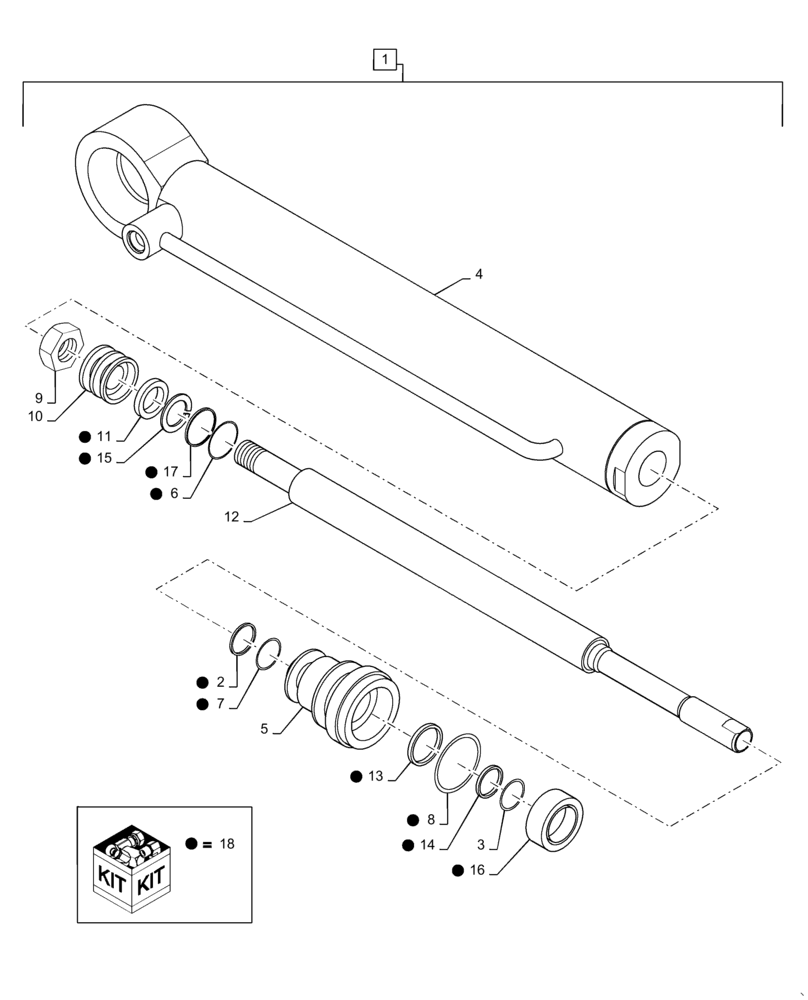

Запчасти Case IH PATRIOT 4440 (25.122.AB[01]) - ACTIVE SUSPENSION, HYDRAULIC CYLINDERS (25) - FRONT AXLE SYSTEM

1

BN320608

HYDRAULIC CYLINDER,Double Acting, 22.23mm Rod, 263.65mm Stroke

Complete, Incl 2 - 17

1шт.

1

BN320608R

REMAN-HYD CYLINDER

Complete

1шт.

1

BN320608C

CORE-HYD CYLINDER

Return Number

1шт.

2

86986191

RING,30.63mm ID x 34.59mm OD x 1.27mm Thk

Back Up, Incl in 18

1шт.

3

86986290

RING,22.73mm ID x 28.22mm OD x 1.27mm Thk

Back Up

1шт.

4

86986208

CYLINDER,34.92mm Bore Dia

Case Assembly

1шт.

5

86986192

RING

Gland

1шт.

6

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Incl in 18

1шт.

7

238-6123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

Incl in 18

1шт.

8

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

Incl in 18

1шт.

9

86986193

JAM NUT

1шт.

10

86986194

PLUNGER

Piston

1шт.

11

86986195

PISTON

Seal, Incl in 18

1шт.

12

86986196

ROD

Cylinder

1шт.

13

86986197

RING,22.23mm ID x 29.56mm OD x 3.45mm Thk

Step Seal, Incl in 18

1шт.

14

86986205

SEAL,22.23mm ID x 28.45mm OD x 6.6mm Thk

Rod, Incl in 18

1шт.

15

86986206

RING,Split, 28.52mm ID x 34.92mm OD x 6.35mm Thk

Wear, Incl in 18

1шт.

16

86986207

WIPER SEAL

Incl in 18

1шт.

17

86986190

RING,16.13mm ID x 20.09mm OD x 1.27mm Thk

Back Up, Incl in 18

1шт.

18

86986214

SEAL KIT

Kit, Incl 2, 6 - 8, 11, 13 - 17

1шт.
