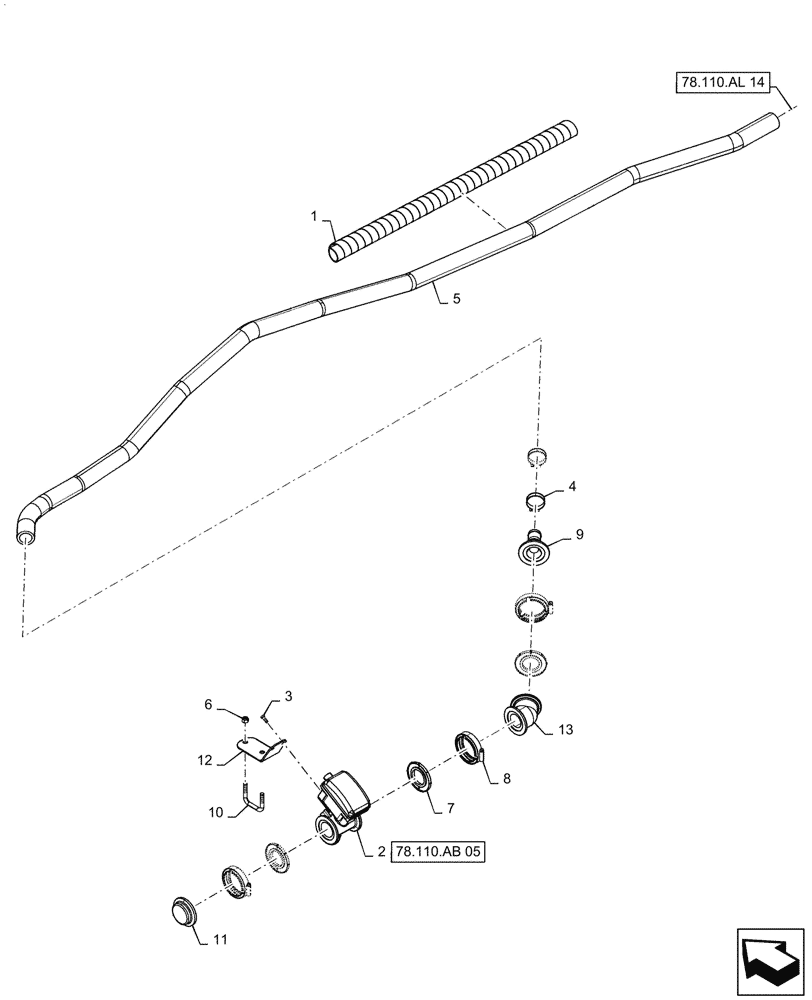

Запчасти Case IH PATRIOT 4440 (78.110.AL[13.1]) - 120, 7 SECTION, LH OUTER BOOM PLUMBING, ASN YGT044000 (78) - SPRAYING

1

84414496

PROTECTOR

Hose Wrap

1шт.

2

87632830

SHUT-OFF VALVE

Electric Plunger, 2" Flange x 1" Flange, 3/4" Full Port

1шт.

See Fig 78.110.AB 05 For Service Parts

1шт.

3

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

2шт.

4

BN320156

HOSE CLAMP

#24, SST

2шт.

5

BN29563

HOSE

1 - 1/4" ID, EPDM, Bulk, 16' Roll

1шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

7

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

3шт.

8

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

9

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

1шт.

10

BN68062

U-BOLT

3/8", 2" ID

1шт.

11

BN304317

PLUG,2" Flange, Poly

2" Manifold Flange

1шт.

12

48018676

MOUNT

Outer Boom Valve

1шт.

13

87265590

COUPLING,2" x 2" 45 Degree Flange

2" 45°

1шт.
