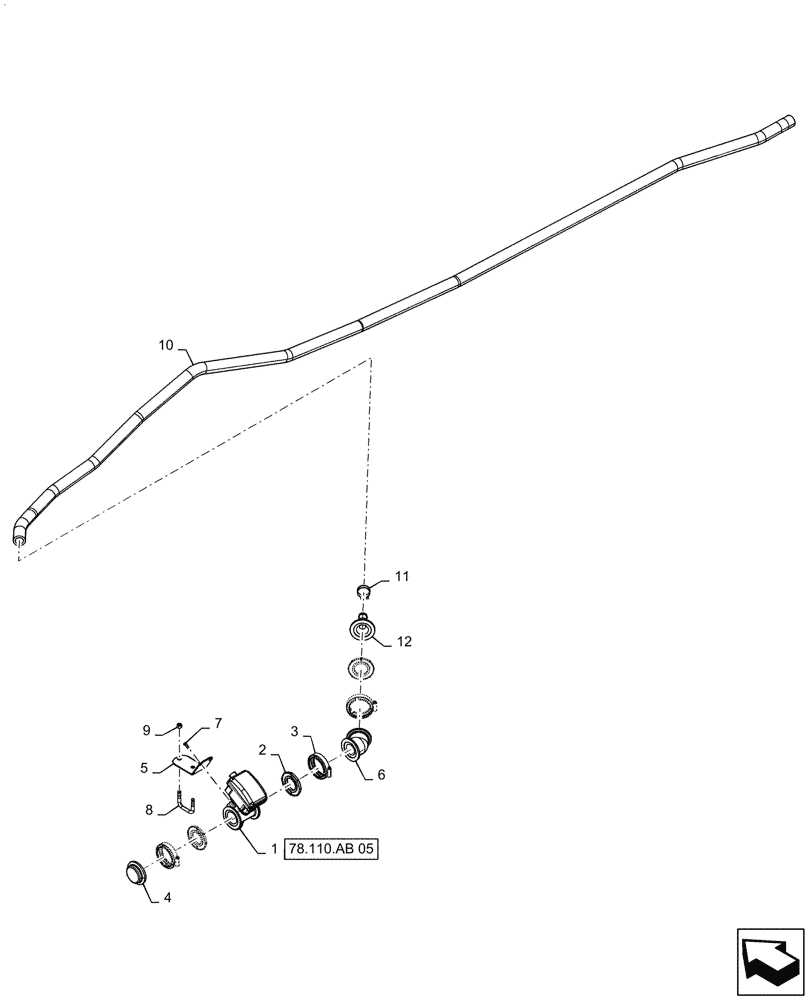

Запчасти Case IH PATRIOT 4440 (78.110.AL[12.2]) - 120, 7 SECTION, LO-FLOW, OUTER BOOM PLUMBING, LH / RH, ASN YGT044000 (78) - SPRAYING

1

87632830

SHUT-OFF VALVE

2" Flange

1шт.

2

47888705

GASKET

2" Flange

3шт.

3

BN303199

CLAMP,2" Flange

3шт.

4

BN304317

PLUG,2" Flange, Poly

1шт.

5

48018676

MOUNT

Shut Off Valve

1шт.

6

87265590

COUPLING,2" x 2" 45 Degree Flange

45°, 2" Flange

1шт.

7

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

2шт.

8

BN68062

U-BOLT

3/8"

1шт.

9

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

10

BN53479

HOSE,1.00" ID BULK

1шт.

11

BN310447

HOSE CLAMP

#20, SST

1шт.

12

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

1шт.
