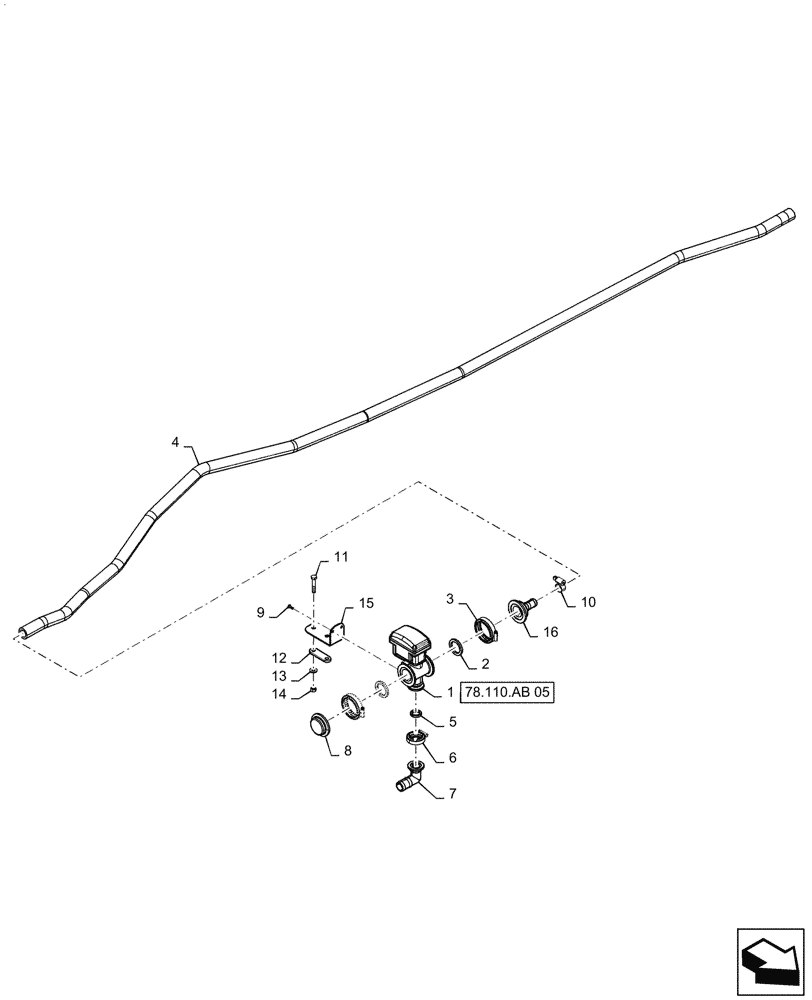

Запчасти Case IH PATRIOT 4440 (78.110.AL[12.1]) - 120, 7 SECTION, LO-FLOW, OUTER BOOM PLUMBING, LH / RH, BSN YGT044001 (78) - SPRAYING

1

87632830

SHUT-OFF VALVE

Electric Plunger, 2.2" Flange x 1" Flange, 3/4" Full Port, Poly

1шт.

See 78.110.AB 04

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

Flange, EPDM

2шт.

3

BN303199

CLAMP,2" Flange

2шт.

4

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

1шт.

5

BN303205

GASKET

1” Flange, EPDM

1шт.

6

BN303203

CLAMP,1" Flange

1шт.

7

87575511

FITTING,1" Flange x 1-1/4" 90 Degree Hose Barb Elbow

1шт.

8

BN304317

PLUG,2" Flange, Poly

1шт.

9

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

2шт.

10

87487834

CLAMP,0.81" - 1.5"

#16, SST

1шт.

11

87341824

BOLT,Hex, M10 x 170mm, Cl 8.8

DOR

2шт.

12

BN308039

PLATE

Spacer

1шт.

13

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

14

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

15

47908751

MOUNT

Outer Boom Valve

1шт.

16

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

1шт.
