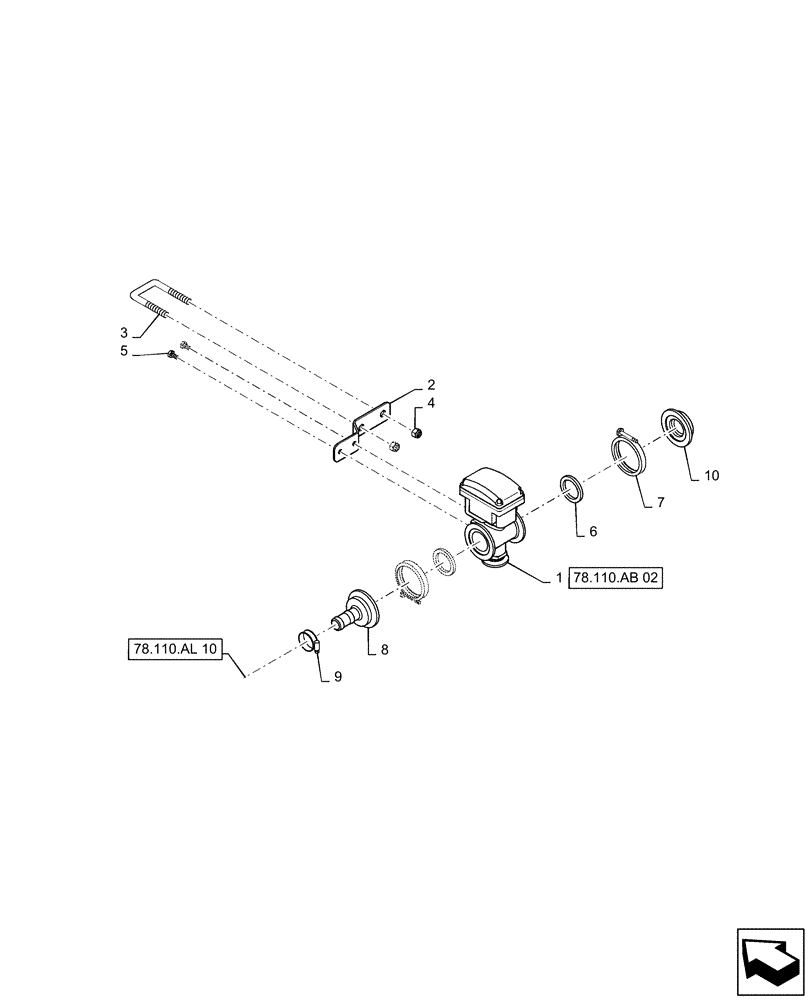

Запчасти Case IH PATRIOT 4440 (78.110.AL[12]) - 90/100, 6 SECTION, LO-FLOW, OUTER BOOM PLUMBING, RH, BSN YGT044000 (78) - SPRAYING

1

87268840

VALVE

Lo-Flow Boom Shutoff

1шт.

See Fig 78.110.AB 02 For Service Parts

1шт.

2

87265462

MOUNTING PARTS

Boom Shutoff Valve

1шт.

3

BN319919

U-BOLT

2.06" ID x 2 - 3/4" x 3/8"

1шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

5

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

6

BN303204

GASKET,1-1/2" EPDM Gasket

2шт.

7

BN303199

CLAMP,2" Flange

2шт.

8

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

1шт.

9

BN75990

HOSE CLAMP

#16, Stainless Steel

1шт.

10

BN304317

PLUG,2" Flange, Poly

1шт.
