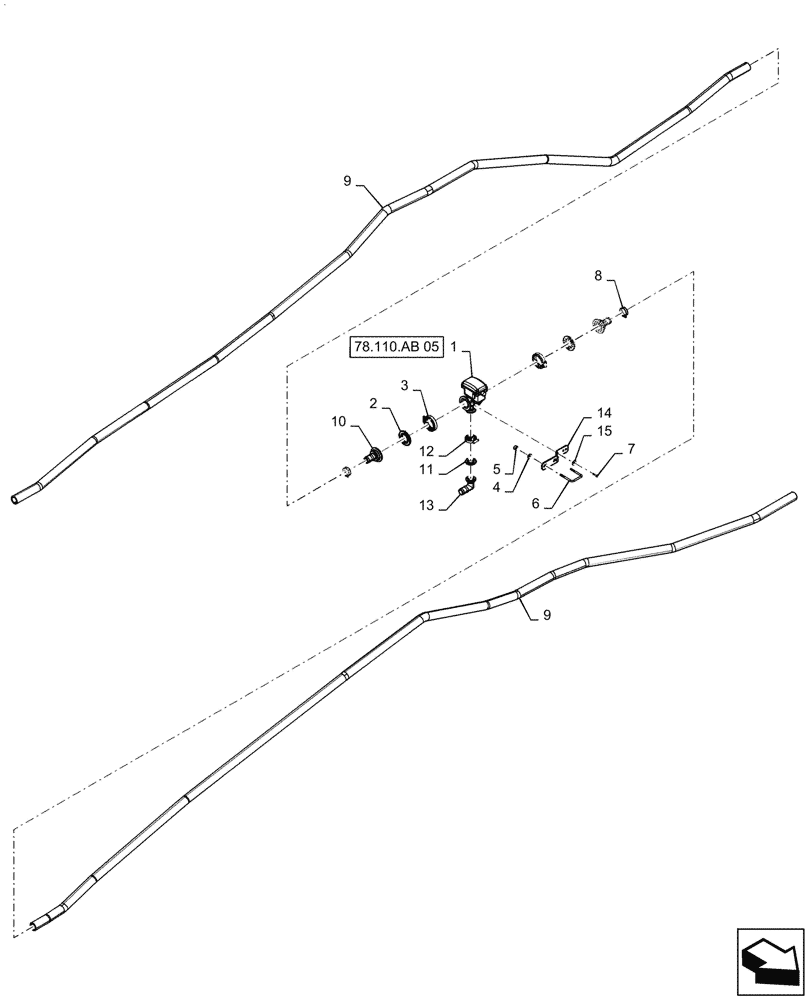

Запчасти Case IH PATRIOT 4440 (78.110.AL[10.8]) - 120, 7 SECTION, LO-FLOW, INNER BOOM PLUMBING, LH / RH, ASN YGT044000 (78) - SPRAYING

1

87632830

SHUT-OFF VALVE

Electric Plunger, 2.2" Flange x 1" Flange, 3/4" Full Port, Poly

1шт.

See 78.110.AB 05

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

Flange, EPDM

2шт.

3

BN303199

CLAMP,2" Flange

2шт.

4

87310596

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

5

87343959

NUT,5/16" - 18, GR B, DOR

2шт.

6

BN313492

U-BOLT

5/16"

1шт.

7

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

2шт.

8

BN320156

HOSE CLAMP

#24, SST

4шт.

9

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

1шт.

10

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2шт.

11

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1” Flange, EPDM

1шт.

12

BN303203

CLAMP,1" Flange

1" Flange

1шт.

13

87575511

FITTING,1" Flange x 1-1/4" 90 Degree Hose Barb Elbow

1шт.

14

47945077

MOUNT

Inner Valve

1шт.

15

BN50138

WASHER,1/4", SS

2шт.
