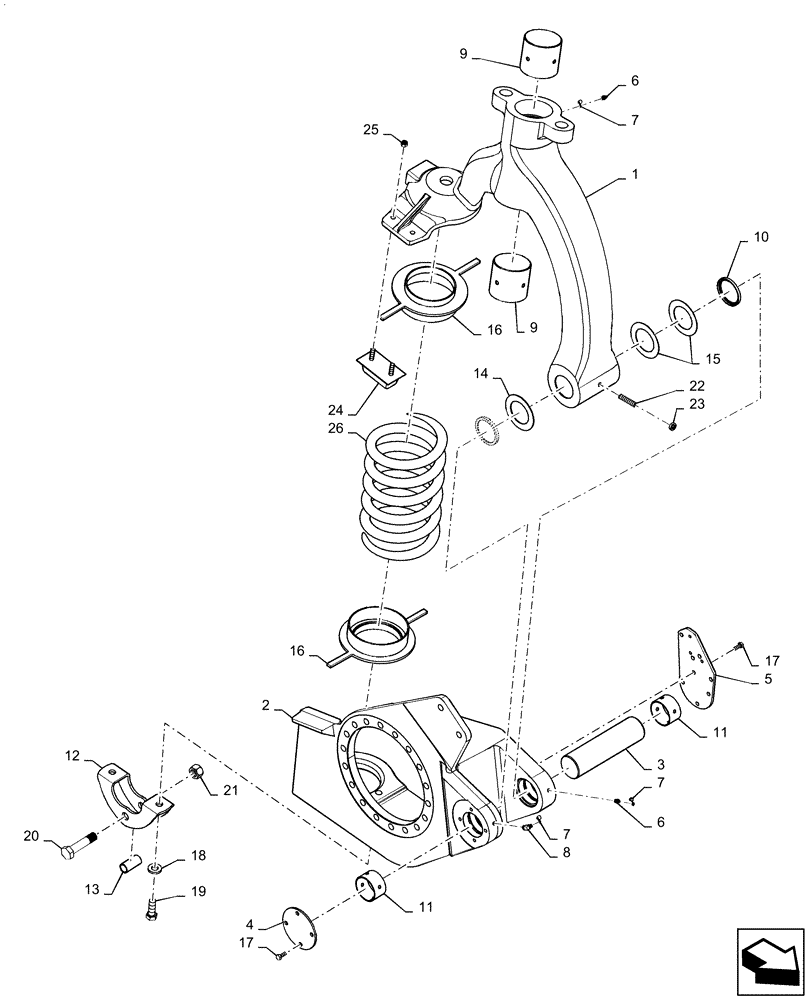

Запчасти Case IH PATRIOT 4440 (25.100.BB[02]) - STRUT, RH, FRONT AND REAR (25) - FRONT AXLE SYSTEM

1

47753017

ARM

Upper Suspension Arm, RH

1шт.

2

84413313

ARM,Trailing, RH Lower

Lower Suspension Arm, Trailing, RH

1шт.

3

BN302046

SHAFT

Lower Strut

1шт.

4

BN302045

CAP

Plate, Dust, Suspension

1шт.

5

BN306819

CAP

Plate, Suspension

1шт.

6

BN302051

NIPPLE, LUBE,M8 x 1, Straight

Grease Fitting

3шт.

7

BN69951

CAP

Grease

4шт.

8

713608R91

LUBE NIPPLE,90 Degree, M8 x 1

Fitting

1шт.

9

87689147

NYLON BEARING,90.65mm ID x 95.35mm OD x 90mm L

Sleeve, Suspension

2шт.

10

BN302044

SEAL,63.5mm ID x 76.2mm OD x 6.35mm Thk

Lower

2шт.

11

87552137

BEARING COVER

Sleeve Lower

2шт.

12

BN302031

MOUNTING PARTS

Shock, Lower

1шт.

13

87269215

SPACER

Shock, Suspension

1шт.

14

BN302048

SHIM,64.01mm ID x 98.55mm OD x 2.55mm Thk

Machine Bushing

1шт.

15

BN302047

SHIM,64mm ID x 98.3mm OD x 1.44mm Thk

Machine Bushing

2шт.

16

BN316108

GUIDE

Guide, Spring Adaptor

2шт.

17

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

18

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5mm x 34mm x 5mm

2шт.

19

86980444

BOLT,Hex, M16 - 2 x 40mm, Cl 8.8, DOR

2шт.

20

87269216

BOLT

Shock

1шт.

21

86980518

NUT,Hex, M20 - 2.5, Cl 8.8, DOR

1шт.

22

BN321041

SET SCREW

Cup Point

1шт.

23

87344035

NUT

Thin

1шт.

24

BN306889

BUMPER

Jounce

1шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

26

BN314705

COIL SPRING

Suspension

1шт.
