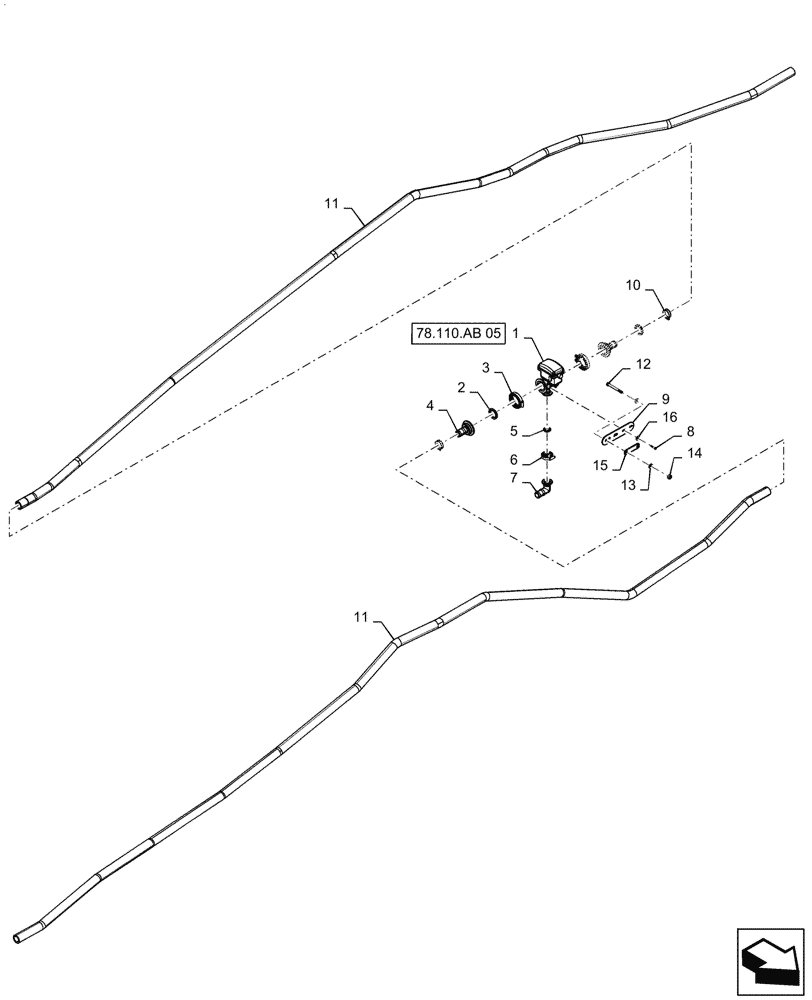

Запчасти Case IH PATRIOT 4440 (78.110.AL[10.7]) - 120, 7 SECTION, LO-FLOW, INNER BOOM PLUMBING, LH / RH, BSN YGT044001 (78) - SPRAYING

1

87632830

SHUT-OFF VALVE

Electric Plunger, 2.2" Flange x 1" Flange, 3/4" Full Port, Poly

1шт.

See 78.110.AB 05

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

Flange, EPDM

2шт.

3

BN303199

CLAMP,2" Flange

2шт.

4

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2шт.

5

BN303205

GASKET

1” Flange, EPDM

1шт.

6

BN303203

CLAMP,1" Flange

1" Flange

1шт.

7

87575511

FITTING,1" Flange x 1-1/4" 90 Degree Hose Barb Elbow

1шт.

8

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

2шт.

9

87625607

MOUNT

Inner Boom Valve

1шт.

10

BN320156

HOSE CLAMP

#24, SST

4шт.

11

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

1шт.

12

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

2шт.

13

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

14

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

15

87620862

PLATE

Backer, 2 1/2" Tube

1шт.

16

BN50138

WASHER,1/4", SS

2шт.
