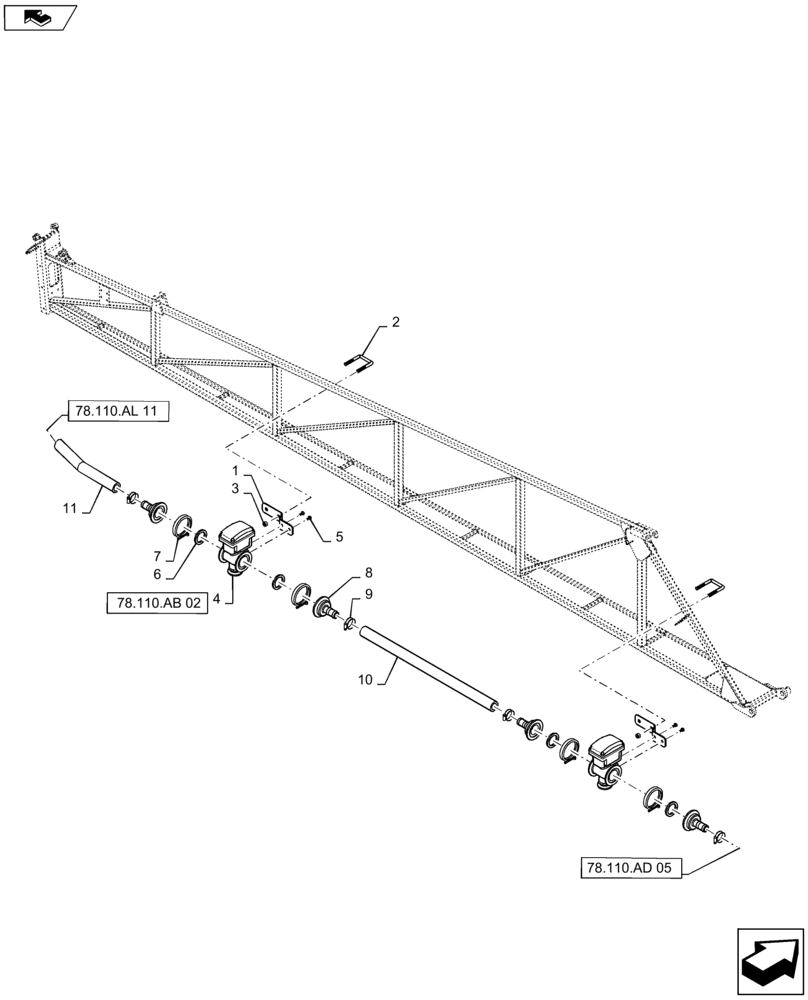

Запчасти Case IH PATRIOT 4440 (78.110.AL[09]) - 90/100, 6 SECTION, LO-FLOW, LH INNER BOOM PLUMBING (78) - SPRAYING

1

87265462

MOUNTING PARTS

Boom Shutoff Valve

2шт.

2

BN319919

U-BOLT

2.06" ID x 2 - 3/4" x 3/8"

2шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

4

87268840

VALVE

Lo - Flow Boom Shutoff

2шт.

See Fig 40.901.02 For Service Parts

1шт.

5

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

6

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

7

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

8

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2" Flange x 1" Hose Barb, Poly

4шт.

9

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

10

87269949

HOSE

1" x 154", EPDM, From Inner Boom Valve To Mid Boom Valve

1шт.

11

87269950

HOSE

1" x 159", EPDM, To Outer Boom Valve

1шт.
