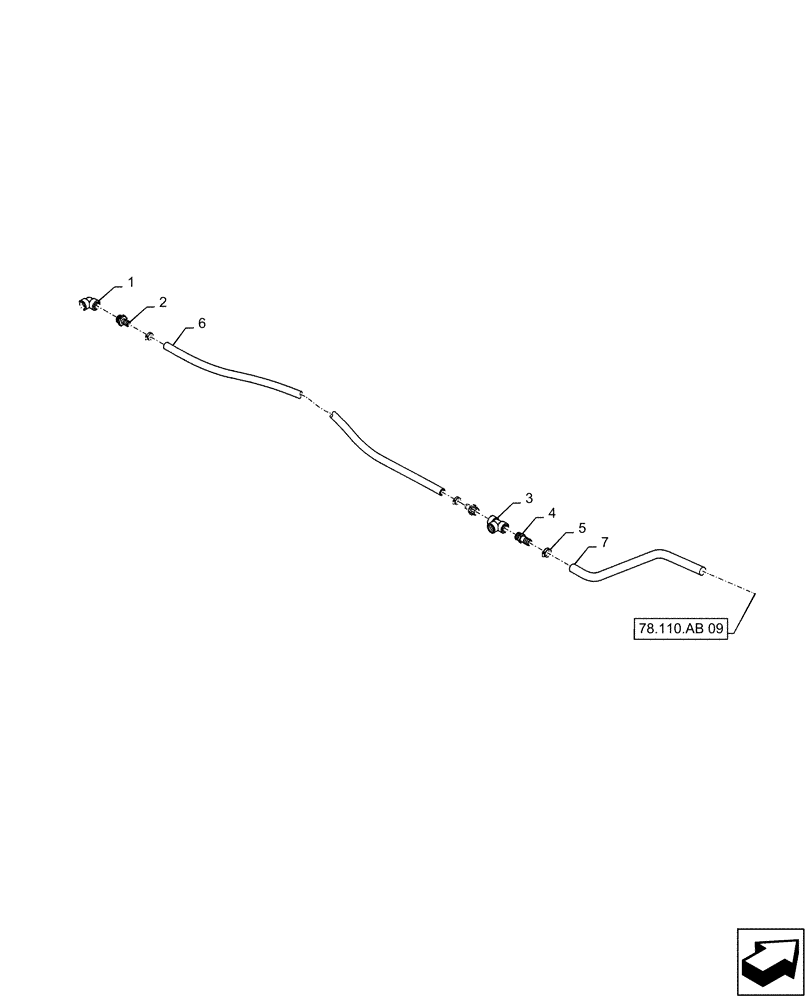

Запчасти Case IH PATRIOT 4440 (78.110.AL[07]) - 100’, 5 AND 6 SECTION, LH OUTER BOOM PLUMBING, BSN YGT042519 (78) - SPRAYING

1

BN313202

ELBOW

1 - 1/4" NPT, 90°, Poly

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1 - 1/4" NPT x 1" Hose Barb, Poly

2шт.

3

BN73662

TEE

1 - 1/4", Poly

1шт.

4

BN73660

PIPE FITTING,1-1/4" NPT Male x 1-1/4" Barbed

1 - 1/4" NPT x 1 - 1/4" Hose Barb, Poly

1шт.

5

BN310447

HOSE CLAMP

#20, Stainless Steel

3шт.

6

BN53844

HOSE

EPDM, 1" ID x 120"

1шт.

7

87383454

HOSE,80.00 mm

1 - 1/4" x 108", Suction

1шт.
