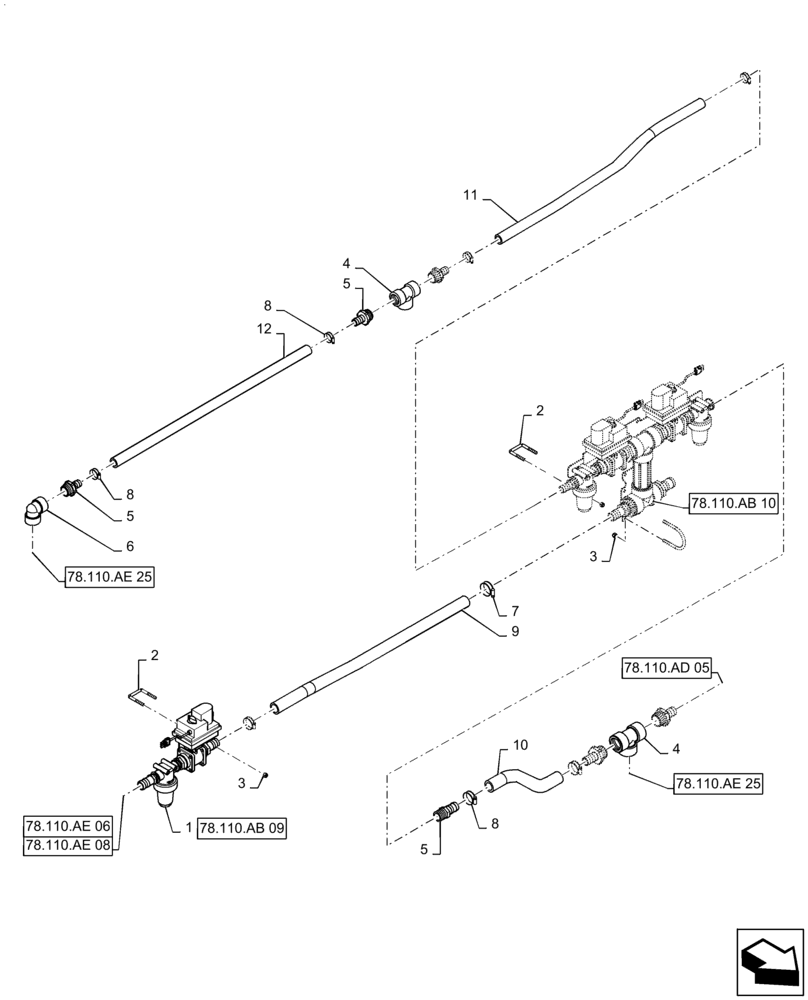

Запчасти Case IH PATRIOT 4440 (78.110.AL[06]) - 90/100, 6 SECTION, RH INNER BOOM PLUMBING (78) - SPRAYING

1

BN321453

VALVE

Outer Section Valve Group, 6 Section, RH

1шт.

See Fig 40.910.32 For Service Parts

1шт.

2

BN319919

U-BOLT

2.06" ID x 2 - 3/4" x 3/8"

6шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

4

BN73662

TEE

1 - 1/4", Poly

2шт.

5

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1 - 1/4" NPT x 1" Hose Barb, Poly

5шт.

6

BN313202

ELBOW

1 - 1/4" NPT, 90°, Poly

1шт.

7

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

8

BN310447

HOSE CLAMP

#20, Stainless Steel

6шт.

9

BN321478

HOSE,31.75mm ID x 3962.4mm L

EPDM, From Inner Section Valve Group To Outer Section Valve Group

1шт.

10

BN53850

HOSE

1" ID x 36" EPDM, Runs To First Spraybar On Inner Boom

1шт.

11

BN321476

HOSE,1.00" ID x 79.00"

EPDM, Runs to Second Spraybar on Inner Boom

1шт.

12

BN320876

HOSE,1.00" ID x 75.00"

EPDM, Runs to Third Spraybar on Inner Boom

1шт.
