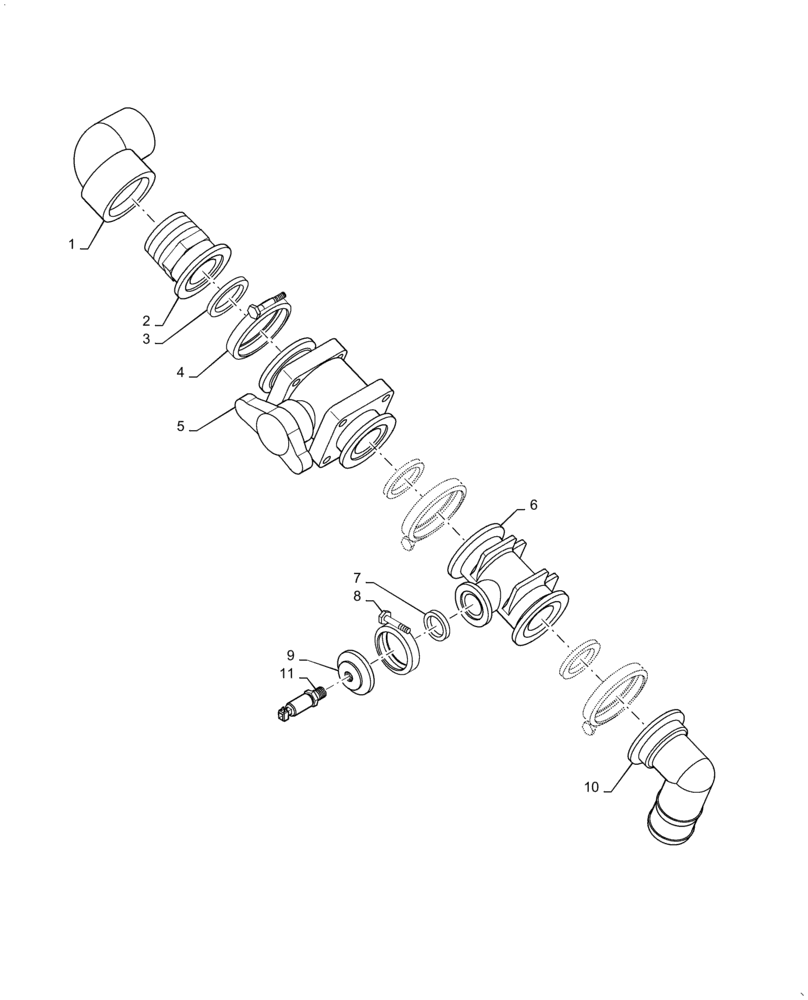

Запчасти Case IH PATRIOT 4440 (78.110.AI[03]) - SPARGE PLUMBING (78) - SPRAYING

1

BN73785

ELBOW

2" NPT x 2" NPT, Poly

1шт.

2

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT, Poly

1шт.

3

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

4

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

5

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

Ball, 2" Flange, With Handle

1шт.

6

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2" Flange x 2" Flange x 1" Flange, Poly

1шт.

7

BN303205

GASKET

1” Flange, EPDM

1шт.

8

BN303203

CLAMP,1" Flange

1" Flange

1шт.

9

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

1" Flange x 1/4" FPT, Poly

1шт.

10

405781A1

FITTING,2" Flange x 2" 90 Degree Hose Barb Elbow

2" Flange x 2" Hose Barb, Poly

1шт.

11

84201517

TRANSDUCER

Pressure, Sparge PSI

1шт.
