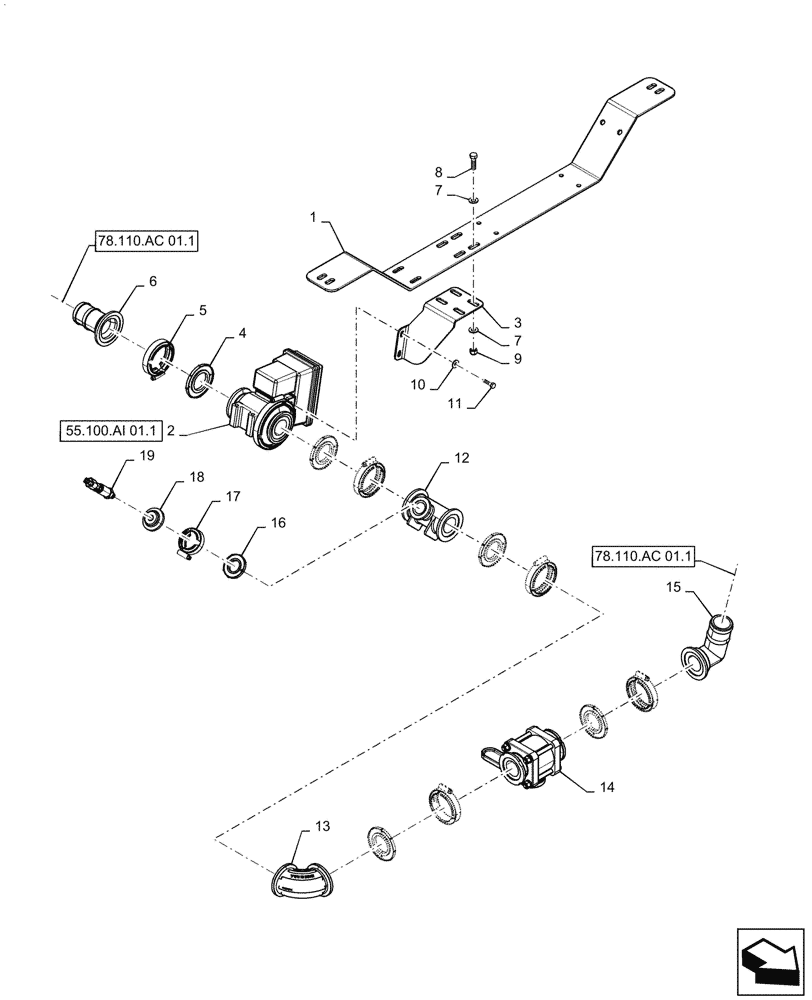

Запчасти Case IH PATRIOT 4440 (78.110.AI[02.1]) - SPARGE VALVE PLUMBING (78) - SPRAYING

1

47889221

PLATE

Sparge Valve Mounting

1шт.

2

87268174

VALVE

Sparge

1шт.

3

47889223

MOUNT

Sparge Valve

1шт.

4

47888705

GASKET

2" Flange

5шт.

5

BN303199

CLAMP,2" Flange

5шт.

6

BN303198

FITTING,2" Flange x 2" Hose Barb, Poly

1шт.

7

87529237

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

8шт.

8

BN50258

BOLT,3/8"-16 X 1.25", Stainless

4шт.

9

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

10

BN50138

WASHER,1/4", SS

2шт.

11

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

2шт.

12

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

1шт.

13

47776943

FITTING,2" Full Port Flange x Flange Sweep

90°, 2" Flange

1шт.

14

405800A1

VALVE,2" Flange Ball Valve

2" Flange

1шт.

15

BN306898

FITTING,2" Flange x 2" 90 Degree Hose Barb Elbow

2" Flange x 2" Hose Barb

1шт.

16

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1шт.

17

BN303203

CLAMP,1" Flange

1шт.

18

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

1шт.

19

47995115

SENSOR

Pressure, 3 Pin

1шт.
