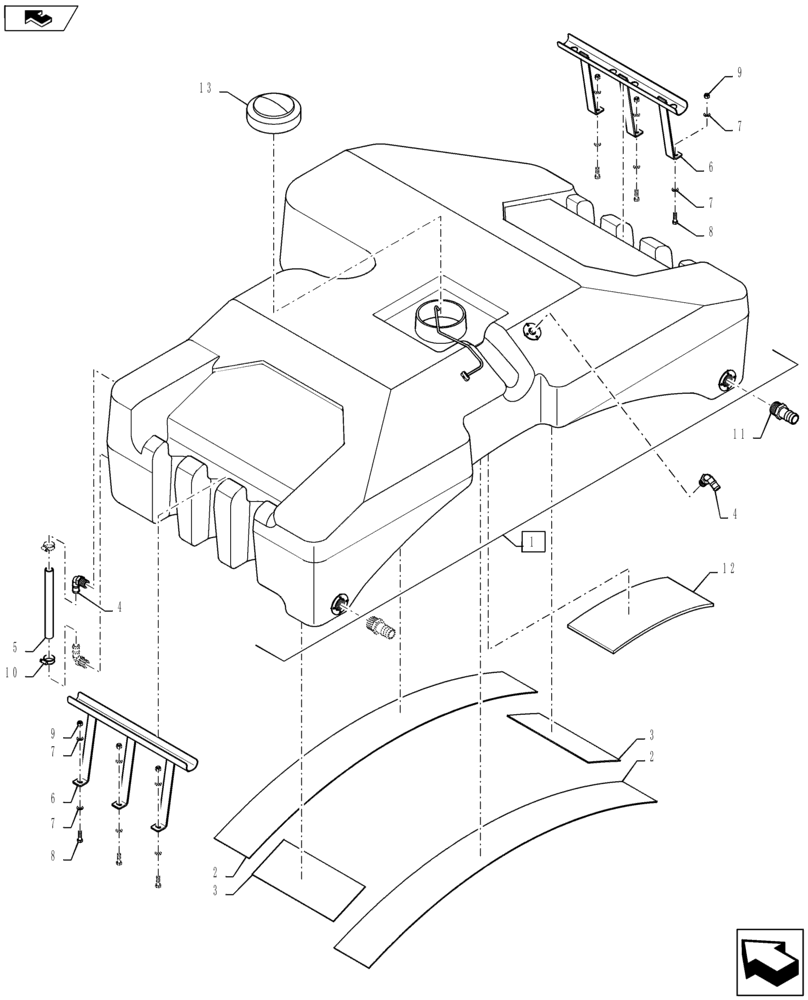

Запчасти Case IH PATRIOT 4440 (78.110.AH [03]) - 140 GALLON RINSE TANK (78) - SPRAYING

1

84574166

TANK

Rinse, 140 Gallon, Mounted On Top Of Eliptical Product Tank, Incl 13

1шт.

2

87380012

RUBBER STRIP

Mat, 51" X 6" X 1/8"

2шт.

3

87380016

RUBBER STRIP

Mat, 14" x 6" x 1/8"

2шт.

4

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, Poly

3шт.

5

BN322785

FLEXIBLE HOSE,0.75" ID x 11.00"

Clear, Rinse Tank Level Gauge

1шт.

6

47401960

BRACKET

Rinse Tank Hold Down

2шт.

7

BN50146

WASHER,3/8", Stainless

12шт.

8

BN50258

BOLT,3/8"-16 X 1.25", Stainless

6шт.

9

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

10

BN310446

HOSE CLAMP

#12, Stainless Steel

2шт.

11

BN73660

PIPE FITTING,1-1/4" NPT Male x 1-1/4" Barbed

Barb, 1 1/4" NPT x 1 1/4" HS

2шт.

12

47402132

MEMBRANE

Masticated, 6" Wide x 1/8" Thick, Bulk, Cut To Length Of 12"

1шт.

13

BN314276

COVER

Rinse Tank Cap

1шт.
