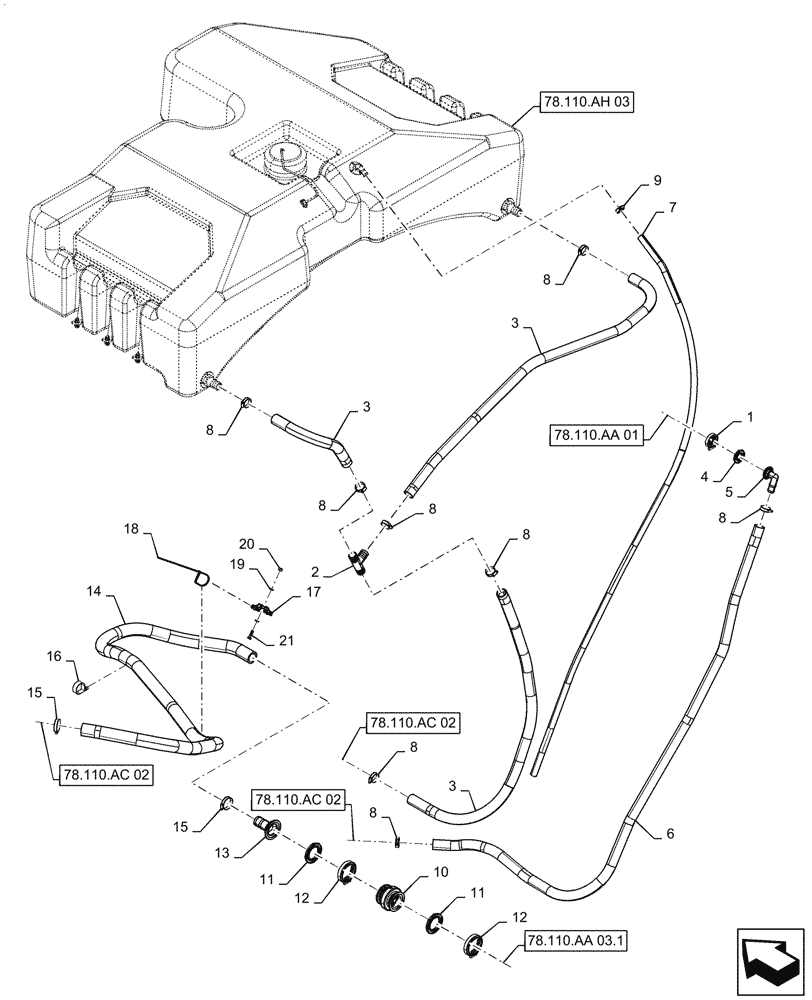

Запчасти Case IH PATRIOT 4440 (78.110.AH[02.1]) - RINSE TANK, AND BACK OF PRODUCT TANK, PLUMBLING ASN YGT042518 (78) - SPRAYING

1

BN303203

CLAMP,1" Flange

1шт.

2

BN317579

TEE

Hose Barb, 1 - 1/4"

1шт.

3

BN310394

HOSE,1.31" ID

Bulk, Suction

1шт.

4

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1шт.

5

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

1шт.

6

BN53479

HOSE,1.00" ID BULK

1шт.

7

BN52310

TUBE,0.75" ID

Bulk, Rinse Tank Breather/Overflow

1шт.

8

BN310447

HOSE CLAMP

#20, SST

8шт.

9

BN310446

HOSE CLAMP

#12, SST

1шт.

10

47767404

VALVE

Check, 2" Flange

1шт.

11

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

2шт.

12

BN313773

CLAMP,2" Full Port

2шт.

13

BN322277

FITTING,2" Full Port Flange x 1-1/2" Hose Barb

1шт.

14

BN53621

HOSE,1.50" ID BULK

1шт.

15

BN310448

HOSE CLAMP

#28 SST

2шт.

16

84364044

CLAMP,47.6mm, Coat, P Type

1шт.

17

84360209

BASE

Tie

1шт.

18

BN570007

STRAP

14" Zip Tie

1шт.

19

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

20

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

21

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.
