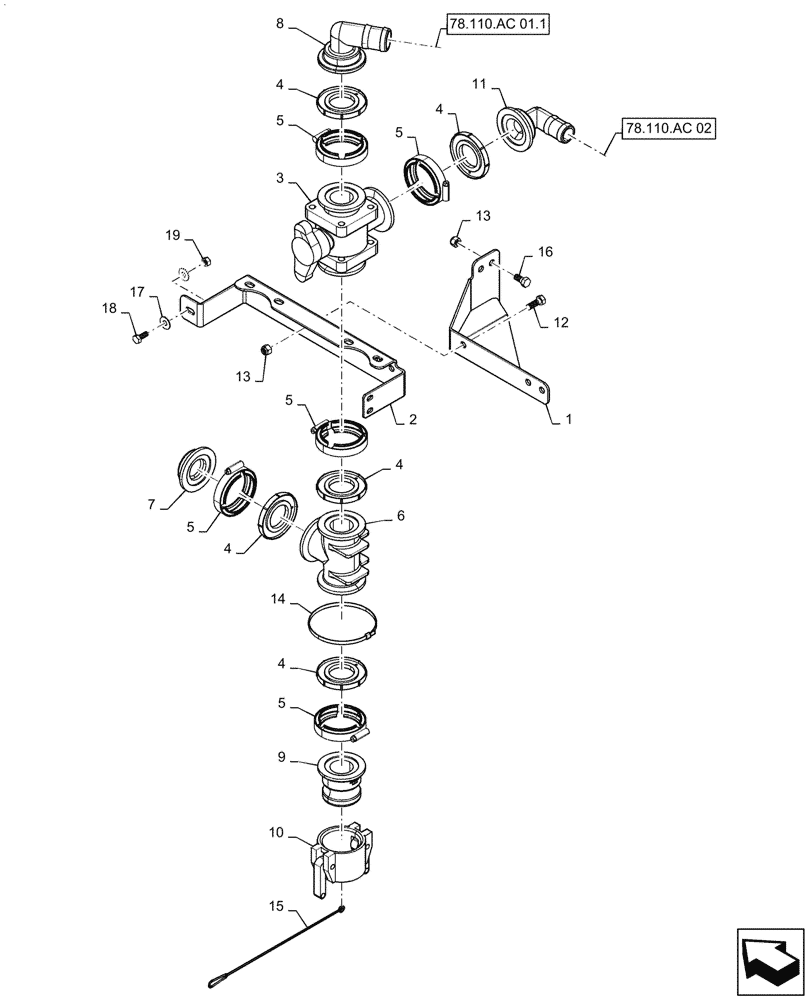

Запчасти Case IH PATRIOT 4440 (78.110.AH[01.1]) - 2" RINSE FILL, ASN YGT042518 (78) - SPRAYING

1

343423A1

MOUNTING PLATE

Rinse Fill, 2"

1шт.

2

343023A1

PLATE

Mount, Load Station

1шт.

3

BN324998

VALVE

Ball, 2" Flange x 2" Flange

1шт.

4

47888705

GASKET

2" Flange, EPDM

5шт.

5

BN303199

CLAMP,2" Flange

5шт.

6

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

1шт.

7

BN304317

PLUG,2" Flange, Poly

1шт.

8

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 - 1/2" Hose Barb, Poly, Runs To Product Tank Sump Plumbing

1шт.

9

47828304

ADAPTER,2" Flange x 2" Male Adapter

2" Flange x 2" Cam Lock

1шт.

10

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever, Poly

1шт.

11

BN303189

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

1шт.

12

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

13

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

14

306132C1

CABLE TIE,14.5" L

1шт.

15

416624A1

ROPE

Lanyard, Nylon, 1/4" x 12"

1шт.

16

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

17

BN50142

WASHER,5/16", Stainless Steel

6шт.

18

BN50476

BOLT,5/16"-18 x 0.75", Stainless

3шт.

19

BN55361

NUT,5/16"-18, Nylon, Stainless

3шт.
