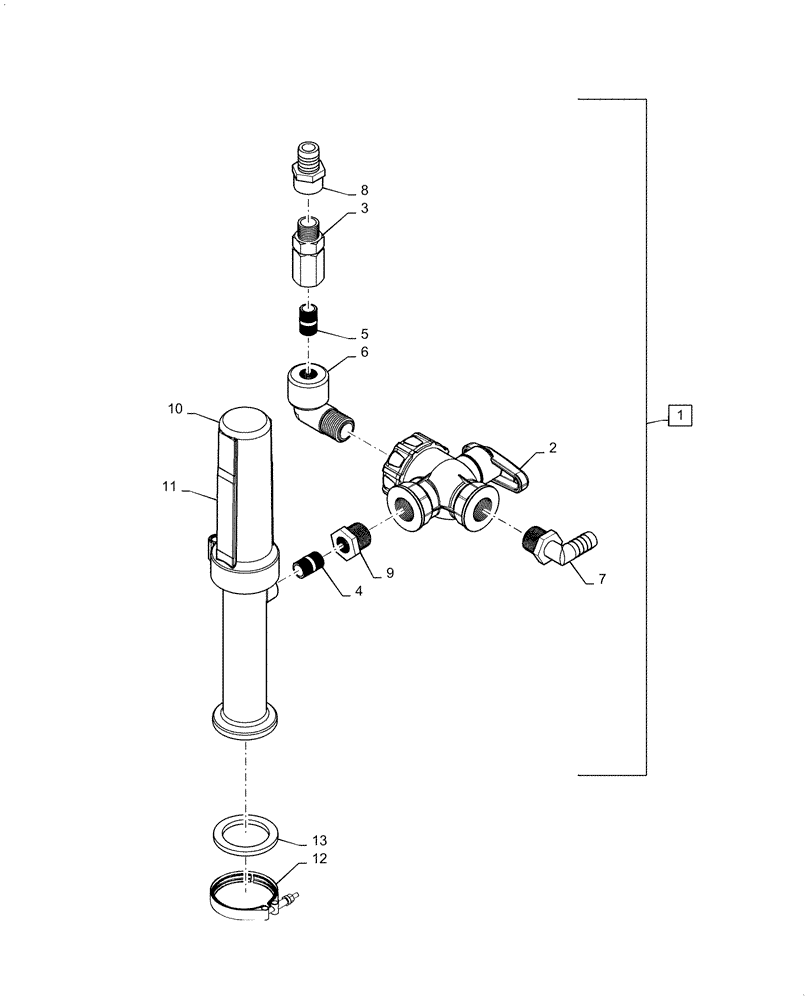

Запчасти Case IH PATRIOT 4440 (78.110.AG[09]) - DIRECT INJECTION RECIRCULATION VALVE (78) - SPRAYING

1

47591517

CONTROL VALVE

Complete Assy with Calibrator, Incl 2 - 11

1шт.

2

84188010

VALVE

3 Way, Continuous Flow

1шт.

3

47592188

CHECK VALVE

12 PSI, with Bleed Hole

1шт.

4

47592325

NIPPLE

Close, SST

1шт.

5

84188007

NIPPLE

Close, 1/2" x 1/2"

1шт.

6

84187992

ELBOW

1/2" Street

1шт.

7

BN73511

FITTING

Elbow, 1/2" NPT x 1/2" Hose Barb

1шт.

8

47592366

FITTING

1/2" FNPT x 1/2" Hose Barb

1шт.

9

47592351

BUSHING

1/2" NPT x 1/4" NPT, SST

1шт.

10

47839104

COVER

Calibrator Cap

1шт.

11

47592170

GAUGE

Pump Calibrator

1шт.

12

84188001

CLAMP BRACKET

1" Flange

1шт.

13

84187999

GASKET

1" Flange

1шт.
