(78.110.AG[08]) - DIRECT INJECTION CHEMICAL PUMP

Запчасти Case IH PATRIOT 4440 (78.110.AG[08]) - DIRECT INJECTION CHEMICAL PUMP (78) - SPRAYING

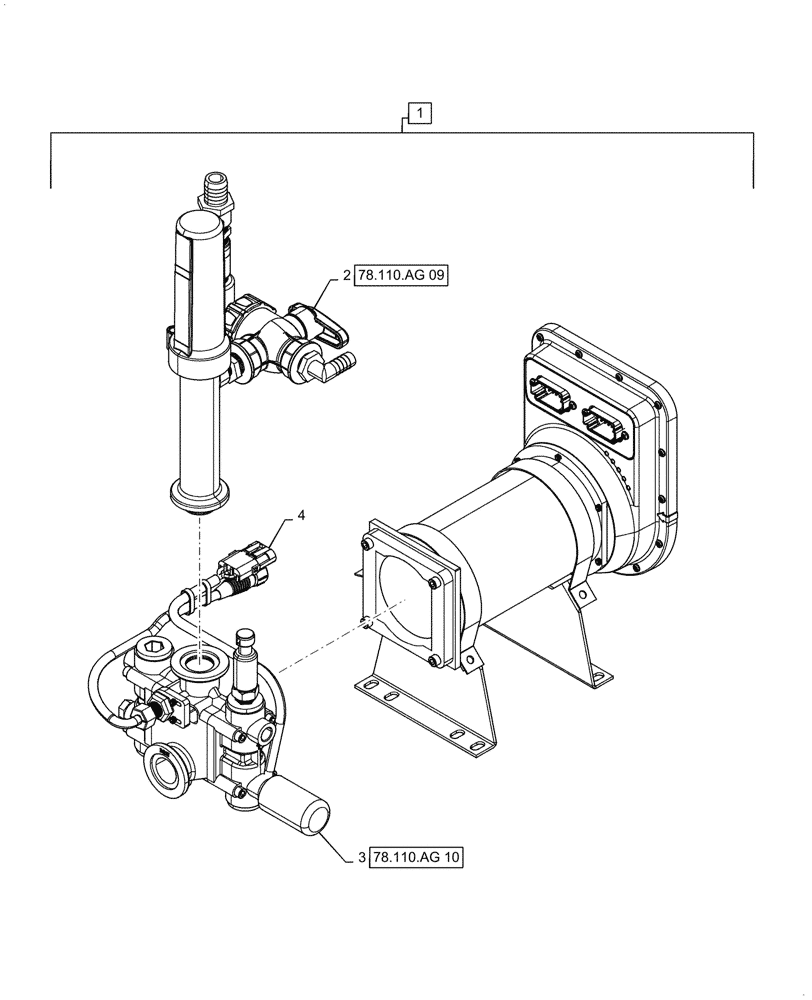

Схема запчастей Case IH PATRIOT 4440 - (78.110.AG[08]) - DIRECT INJECTION CHEMICAL PUMP (78) - SPRAYING
2
78.110.ag 10
78.110.ag 09
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47519472

PUMP

Direct Chemical Injection, Complete, Incl 2, 3

1шт.

2

47591517

CONTROL VALVE

Recirculation Valve Assembly with Calibrator

1шт.

See 78.110.AG 06 for Service

1шт.

3

47590995

KIT

Pump Replacement

1шт.

See 78.110.AG 07 for Service

1шт.

4

47933619

WIRE HARNESS

Flow Monitor, Adapter

1шт.

Выбрано товаров: 6
