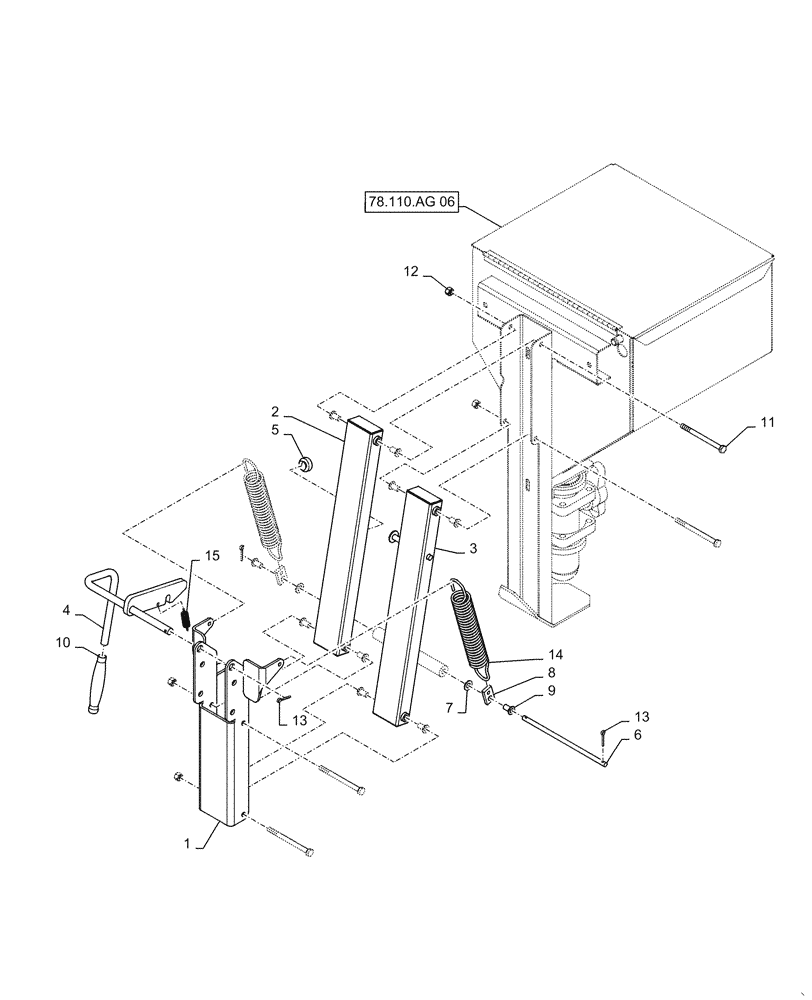

Запчасти Case IH PATRIOT 4440 (78.110.AG[05]) - CHEMICAL INDUCTOR TANK GROUP WITH LINKAGE (78) - SPRAYING

1

BN324764

MOUNT

Mount, Linkage Arm

1шт.

2

BN318197

ARM

Upper Linkage

1шт.

3

BN318198

ARM

Lower Linkage

1шт.

4

BN318200

LATCH

Linkage Arm

1шт.

5

BN319152

RUBBER BUMPER

1" OD

1шт.

6

BN319247

PIN,7.94mm OD x 210mm L

Spring Retension

1шт.

7

BN319150

WASHER

3/8", Nylon

2шт.

8

BN319106

ADJUSTING PLATE

Adjustment

2шт.

9

BN319151

BUSHING

5/16", Shouldered, Nylon

10шт.

10

BN29274

GRIP

Black, Vinyl, 1/2" ID x 4" Long

1шт.

11

87342752

BOLT

5/16" - 18 x 4", G5

4шт.

12

87343959

NUT,5/16" - 18, GR B, DOR

4шт.

13

BN1630425

PIN, SPLIT (COTTER)

PIN, COTTER 1/8" x 1"

3шт.

14

84588820

TENSION SPRING

1 - 7/8" OD x 7 - 7/8" Long

2шт.

15

BN311889

SPRING

.50" x 2" x .067", Stainless Steel

1шт.
