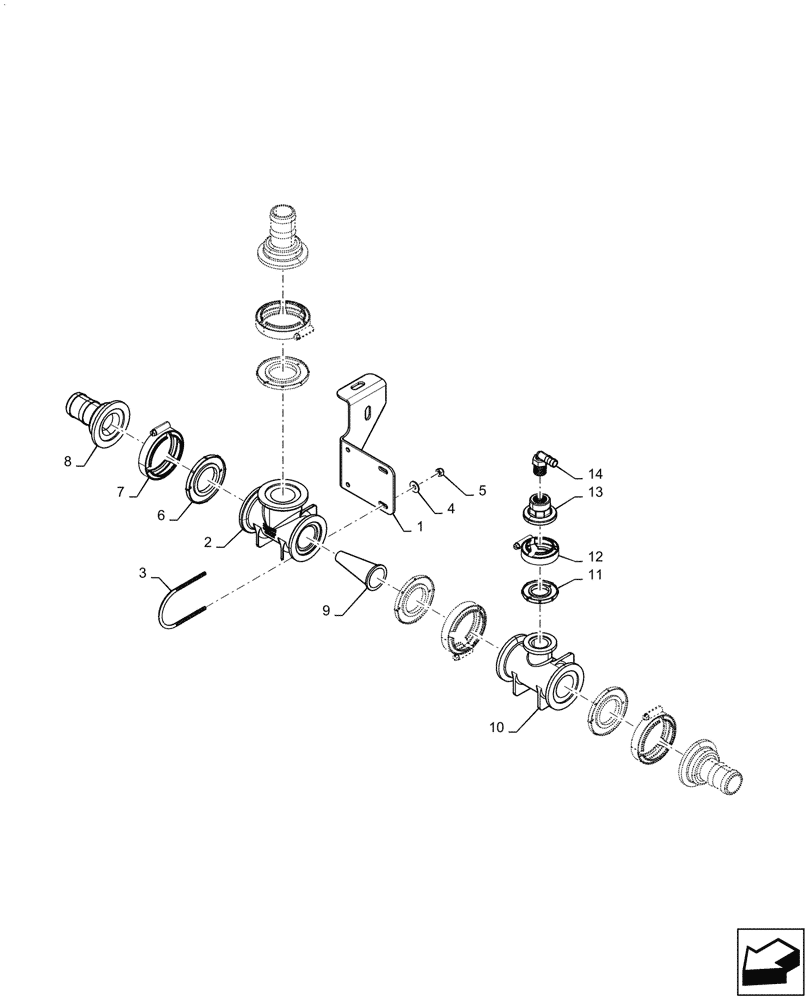

Запчасти Case IH PATRIOT 4440 (78.110.AG[04.1]) - CHEMICAL INDUCTOR, TEE GROUP ASN YFT042404 (78) - SPRAYING

1

47894648

MOUNT

Tee Mount

1шт.

2

47894646

TEE,2” Manifold Tee With Venturi Insert

2" Flange

1шт.

3

BN303201

U-BOLT

1/4" x 2 3/8" x 3 3/4"

2шт.

4

BN50138

WASHER,1/4", SS

4шт.

5

BN55359

LOCK NUT,1/4"-20, SS

4шт.

6

47888705

GASKET

2" Flange, EPDM

4шт.

7

BN303199

CLAMP,2" Flange

4шт.

8

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

3шт.

9

21384

VENTURI

1 1/2"

1шт.

10

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

1шт.

11

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1шт.

12

BN303203

CLAMP,1" Flange

1шт.

13

47898148

PLUG,1" Flange Plug with 1/2" FPT

1" Flange x 1/2" FPT

1шт.

14

BN73511

FITTING

90°, 1/2" Hose Barb x 1/2" NPT

1шт.
