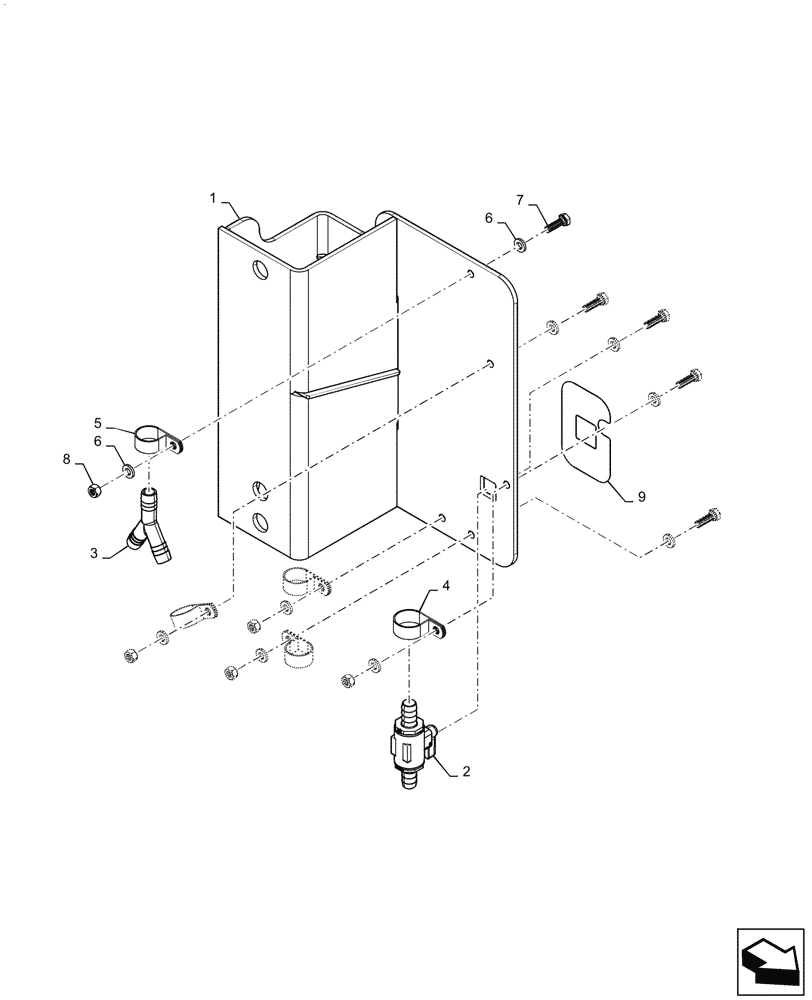

Запчасти Case IH PATRIOT 4440 (78.110.AG[03.1]) - CHEMICAL INDUCTOR VALVE, ASN YFT042404 (78) - SPRAYING

1

47897718

MOUNT

Chem Eductor

1шт.

2

47864538

VALVE,1/2" Hose Barb Micro Valve

Ball, 1/2" Hose Barb x 1/2" Hose Barb

1шт.

3

47864540

FITTING

"Y" 1/2" Hose Barb

1шт.

4

87612756

CLAMP,25.4mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

5

87591913

CLAMP,22.2mm, Coat, 7.1mm Bolt Hole, P Type

4шт.

6

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

10шт.

7

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

5шт.

8

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

5шт.

9

47896918

DECAL

Chem Eductor

1шт.
