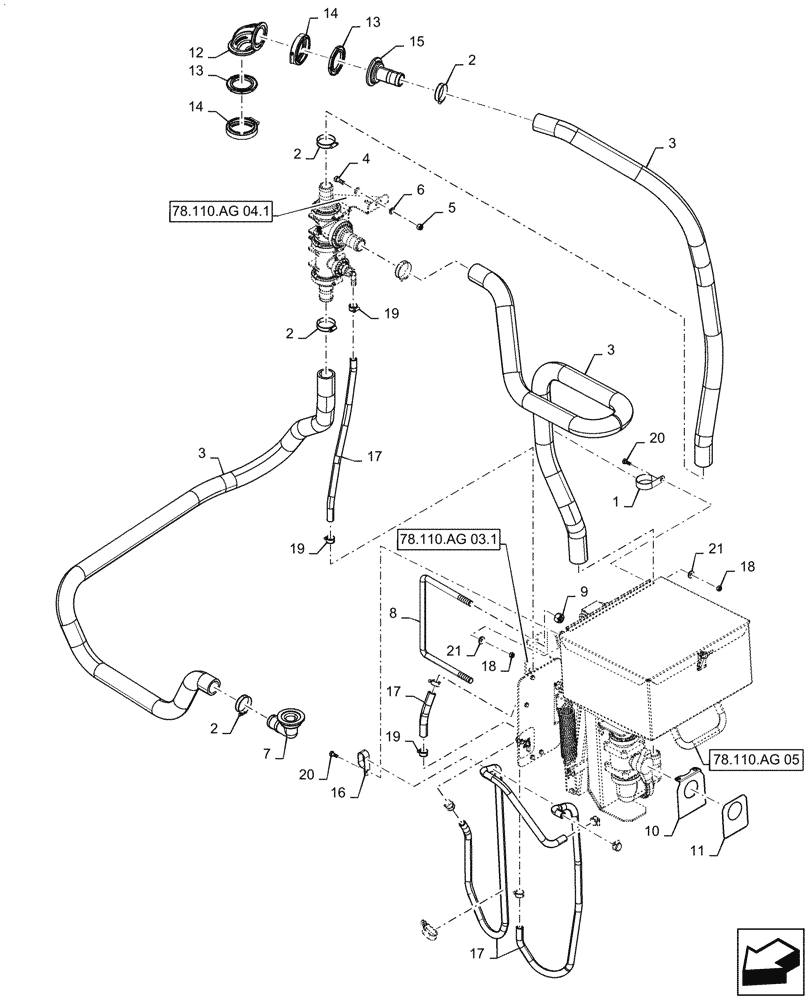

Запчасти Case IH PATRIOT 4440 (78.110.AG[02.1]) - CHEMICAL INDUCTOR GROUP, ASN YFT042404 (78) - SPRAYING

1

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

2

BN310448

HOSE CLAMP

#28, SST

6шт.

3

BN309785

HOSE

1 1/2" Kanaflex, 33' Bulk Roll

1шт.

4

BN50254

BOLT,3/8"-16 x 1", Stainless

5шт.

5

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

5шт.

6

BN50146

WASHER,3/8", Stainless

2шт.

7

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb

1шт.

8

BN325918

U-BOLT

M16 x 10" ID x 7 3/8" L

1шт.

9

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

10

BN320997

BRACKET

Decal Mount, Stainless Steel

1шт.

11

343187A1

DECAL

Chemical Inductor

1шт.

12

47767922

FITTING,2" Full Port Flange x Flange Sweep

1шт.

13

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

2шт.

14

BN313773

CLAMP,2" Full Port

2шт.

15

BN322277

FITTING,2" Full Port Flange x 1-1/2" Hose Barb

1шт.

16

R54363

CLAMP

2шт.

17

BN54239

HOSE,12.7mm ID x 3048mm L

Bulk

1шт.

18

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

19

BN324022

HOSE CLAMP

#8, SST

8шт.

20

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

21

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.
