(78.110.AG[02]) - CHEMICAL INDUCTOR GROUP, BSN YFT04205

Запчасти Case IH PATRIOT 4440 (78.110.AG[02]) - CHEMICAL INDUCTOR GROUP, BSN YFT04205 (78) - SPRAYING

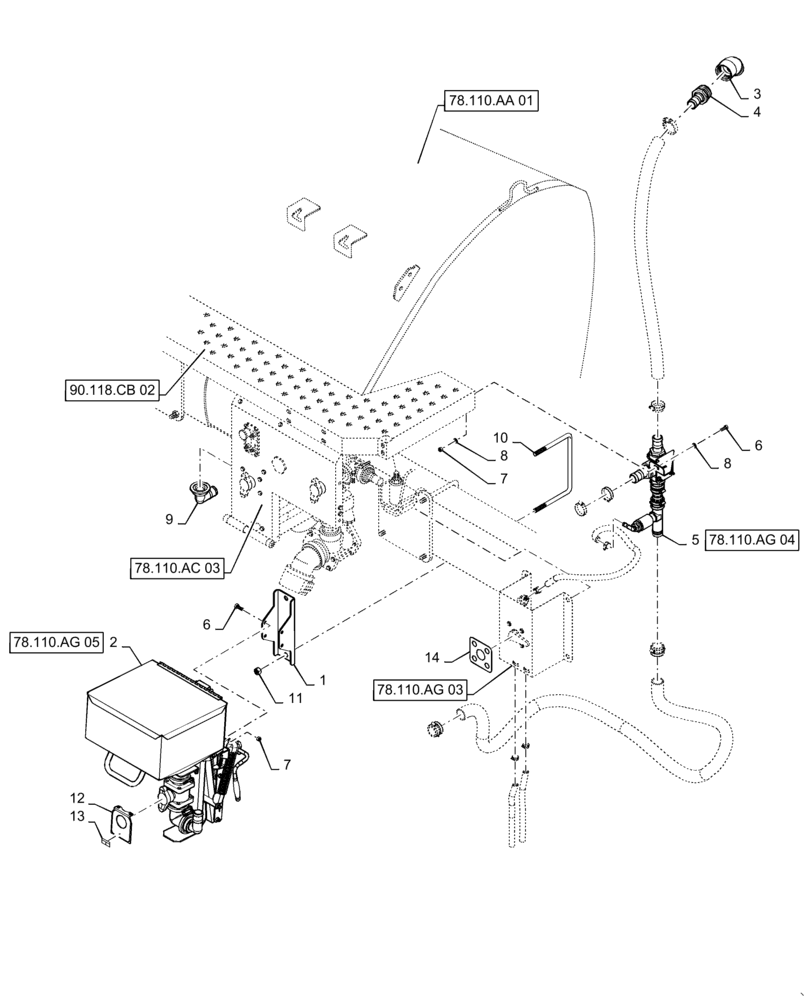

Схема запчастей Case IH PATRIOT 4440 - (78.110.AG[02]) - CHEMICAL INDUCTOR GROUP, BSN YFT04205 (78) - SPRAYING
78.110.ag 03
10
7
6
6
78.110.ag 05
78.110.ac 03
14
5
8
9
4
3
7
11
1
78.110.ag 04
90.118.cb 02
78.110.aa 01
12
2
13
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

342643A1

MOUNTING PLATE

Chemical Inductor

1шт.

2

BN324763

TANK

Chemical Inductor Tank Group, With Linkage

1шт.

See Fig 78.110.AG 05 For Service Parts

1шт.

3

BN73793

ELBOW,45 Degree Elbow, 2" Female NPT x 2" Female NPT, Poly

45 Deg, 2" NPT, Poly

1шт.

4

BN305163

FITTING,2" - 11-1/2 Male NPT x 1-1/2" Hose Barb, Poly

2" NPT x 1 - 1/2" Hose Barb

1шт.

5

BN324807

SERVICE KIT

Inductor Check Tee Group

1шт.

See Fig 78.110.AG 04 For Service Parts

1шт.

6

BN50254

BOLT,3/8"-16 x 1", Stainless

5шт.

7

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

5шт.

8

BN50146

WASHER,3/8", Stainless

2шт.

9

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 - 1/2" Hose Barb, Poly

1шт.

10

BN325918

U-BOLT

M16 x 256mm ID x 187mm IL

1шт.

11

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

12

BN320997

BRACKET

Decal Mount, Stainless Steel

1шт.

13

343187A1

DECAL

Chemical Inductor

1шт.

14

344403A1

DECAL

Chemical Inductor/Tank Rinse Valve

1шт.
