(78.110.AG[01]) - CHEMICAL INDUCTION AND TANK RINSE VALVE

Запчасти Case IH PATRIOT 4440 (78.110.AG[01]) - CHEMICAL INDUCTION AND TANK RINSE VALVE (78) - SPRAYING

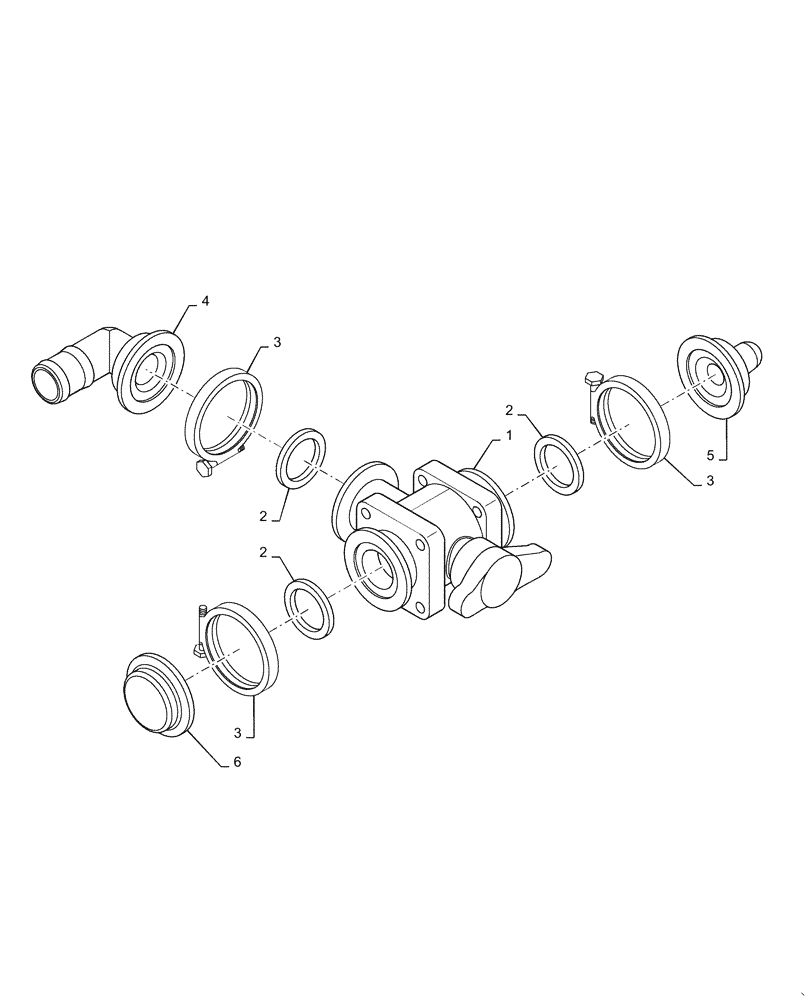

Схема запчастей Case IH PATRIOT 4440 - (78.110.AG[01]) - CHEMICAL INDUCTION AND TANK RINSE VALVE (78) - SPRAYING
3
2
1
3
2
6
2
3
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN324998

VALVE

Ball, 2" Flange x 2" Flange

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

4

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 - 1/2" Hose Barb, Poly

1шт.

5

BN322003

FITTING,2" Flange x 1" 90 Degree Hose Barb Elbow

2" Flange x 1" Hose Barb

1шт.

6

86984085

PLUG,2" Flange Plug

2" Manifold

1шт.

Выбрано товаров: 6
