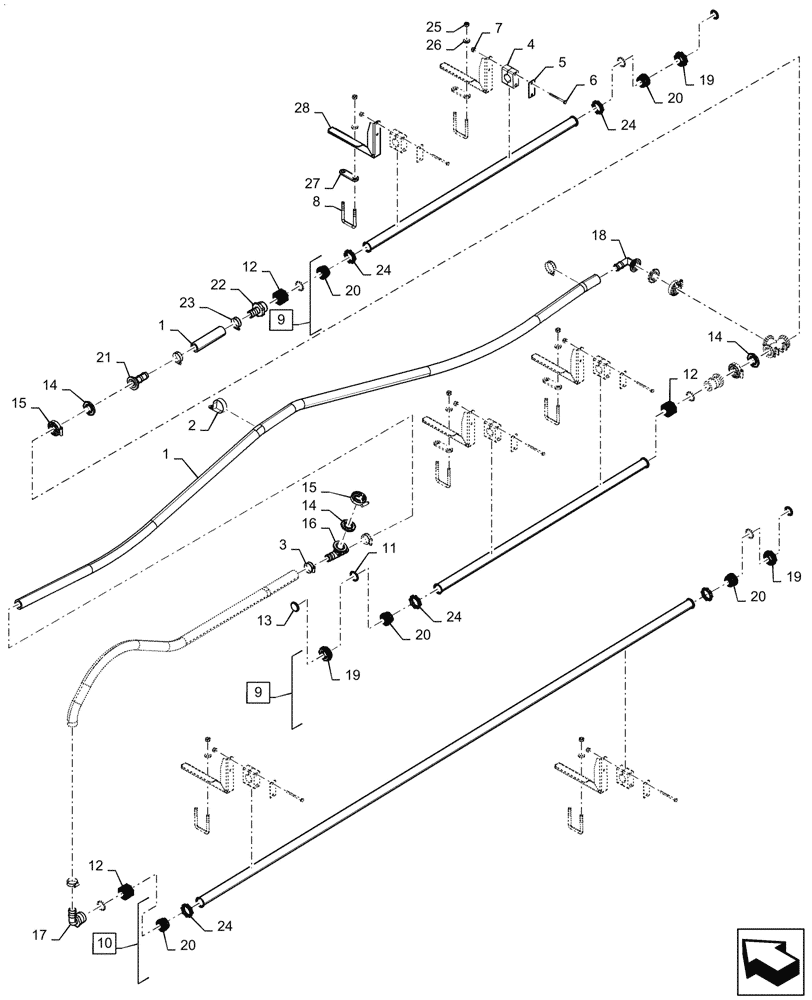

Запчасти Case IH PATRIOT 4440 (78.110.AE[40.1]) - SPRAYBAR, 100, 6 SECTION, 20" SPACING RH OUTER AND BREAKAWAY ASN YGT044000 (78) - SPRAYING

1

BN53479

HOSE,1.00" ID BULK

EPDM, 30' Roll

1шт.

2

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

3

BN320156

HOSE CLAMP

# 24, SST

4шт.

4

BN67054

CLAMP

Spraybar

6шт.

5

BN309483

PLATE

Cover

6шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

12шт.

7

BN55359

LOCK NUT,1/4"-20, SS

12шт.

8

47650282

U-BOLT

M10 Square

6шт.

9

84159733

BOOM,20/30" Nozzle Spacing

Spraybar, 44 1/2" Long, 3 Hole, 20" Spacing, Incl 19, 20, 24

2шт.

10

87671762

BOOM,106" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, Incl 19 - 21

1шт.

11

84181302

SEALING RING

1 5/16"

4шт.

12

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupling, 1 1/4" FPT

3шт.

13

87630099

PLUG,1" SST

Spraybar, 1"

3шт.

14

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

4шт.

15

BN303203

CLAMP,1" Flange

4шт.

16

47841653

TEE

1" Flange x 1" Hose Barb

1шт.

17

BN2296590

90 ELBOW

1 1/4 MPT x 1" Hose Barb

1шт.

18

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

1шт.

19

87630105

NUT

Quick Nut

6шт.

20

87630103

FITTING

Binding Ring

6шт.

21

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1шт.

22

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1шт.

23

BN310447

HOSE CLAMP

#20, SST

2шт.

24

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Ring

6шт.

25

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

26

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

27

47654165

SPACER

U Bolt

6шт.

28

84532753

MOUNT

Spraybar

6шт.
