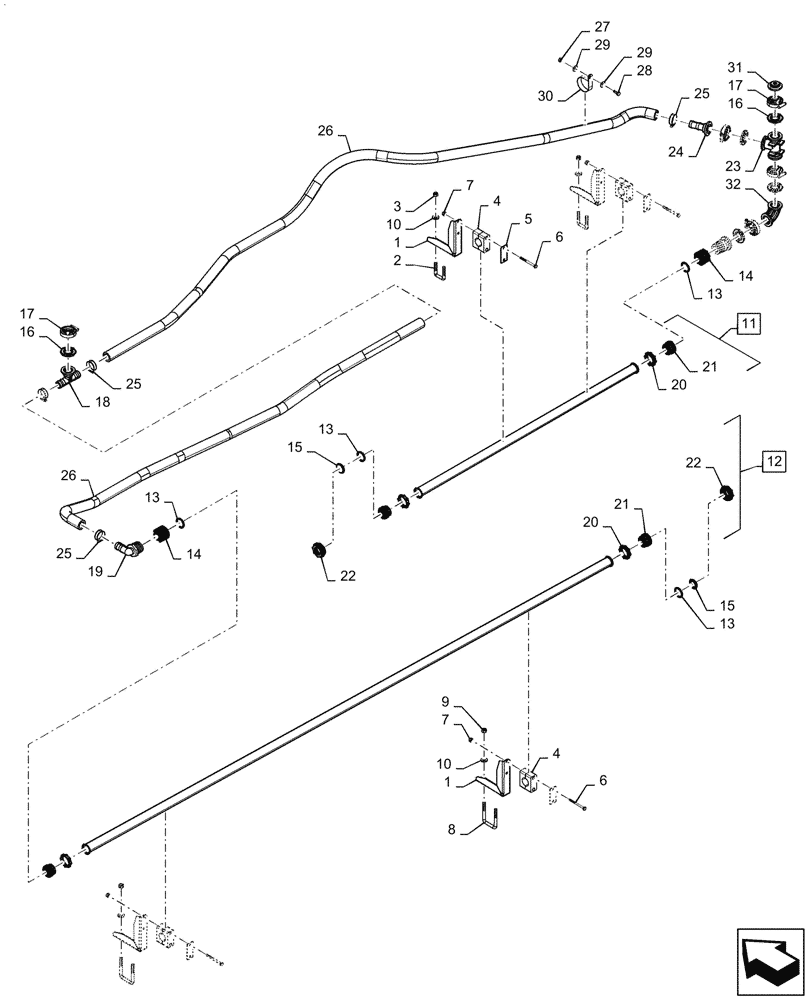

Запчасти Case IH PATRIOT 4440 (78.110.AE[36.1]) - SPRAYBAR, 90 / 100, 6 SECTION, 20" SPACING, LH INNER AND CENTER, ASN YGT044000 (78) - SPRAYING

1

BN323957

BRACKET

Spraybar

4шт.

2

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

Center

2шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

4

BN67054

CLAMP

Spraybar

4шт.

5

BN309483

PLATE

Cover

4шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

47650282

U-BOLT

M10 Square, Outer

2шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

10

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

11

84159733

BOOM,20/30" Nozzle Spacing

Spraybar, 44 1/2" Long, 3 Hole, 20" Spacing, Incl 20 - 22

1шт.

12

87671762

BOOM,106" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, Incl 20 - 22

1шт.

13

84181302

SEALING RING

1 5/16"

3шт.

14

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupling, 1 1/4" FPT

2шт.

15

87630099

PLUG,1" SST

Spraybar

2шт.

16

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

8шт.

17

BN303203

CLAMP,1" Flange

8шт.

18

47841653

TEE

1" Flange x 1" Hose Barb

1шт.

19

BN2296590

90 ELBOW

1 1/4" MPT x 1" Hose Barb

1шт.

20

87630103

FITTING

Binding Ring

4шт.

21

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Ring

4шт.

22

87630105

NUT

Quick Nut

4шт.

23

BN304316

FITTING,1" Flange x 1" Flange x 1" Flange, Poly

1шт.

24

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1шт.

25

BN310477

CLAMP

# 20, SST

4шт.

26

BN53479

HOSE,1.00" ID BULK

EPDM, 30' Roll

1шт.

27

BN55361

NUT,5/16"-18, Nylon, Stainless

1шт.

28

BN50476

BOLT,5/16"-18 x 0.75", Stainless

1шт.

29

BN50142

WASHER,5/16", Stainless Steel

1шт.

30

515-23571

CLAMP,2 1/4", Insul, 3/8" Bolt

1шт.

31

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

1шт.

32

47917419

FITTING,90 Degree 1" Flange

1шт.
