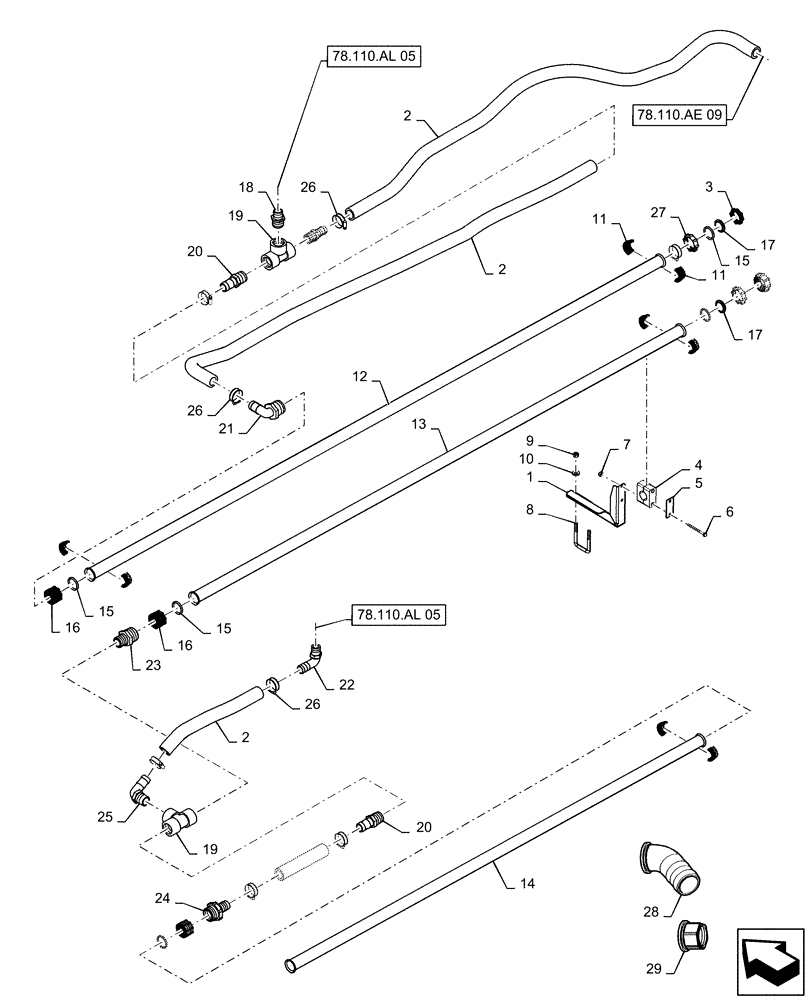

Запчасти Case IH PATRIOT 4440 (78.110.AE[35]) - SPRAYBAR, 90 / 100, 6 SECTION, 20" SPACING, LH INNER, BSN YGT 044001 (78) - SPRAYING

1

BN323957

BRACKET

Spraybar, Inner

6шт.

2

BN53479

HOSE,1.00" ID BULK

1шт.

3

87630105

NUT

Quick Nut

3шт.

4

BN67054

CLAMP

1.315"

6шт.

5

BN309483

PLATE

Single Cover

6шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

12шт.

7

BN55359

LOCK NUT,1/4"-20, SS

12шт.

8

47650282

U-BOLT

M 10, Square

6шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

10

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

11

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve

4шт.

12

87671762

BOOM,106" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Hole, 20" Spacing, 106" Long

1шт.

13

87671763

BOOM,85" Long, 5 Holes, 20" Nozzle Spacing

Spraybar, 5 Hole, 20" Spacing, 84-1/2" Long

1шт.

14

87671764

BOOM,64-1/2" Long, 4 Holes, 20" Nozzle Spacing

Spraybar, 4 Hole, 20" Spacing, 64-1/2" Long

1шт.

15

84181302

SEALING RING

Rectangular Profile, 1-5/16" x 1-9/16", CL 5

6шт.

16

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Spraybar Connector

3шт.

17

87630099

PLUG,1" SST

Flange Cap For Spraybar

3шт.

18

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

Reducer, 1" MPT x 3/4" MPT

1шт.

19

BN73629

TEE

1" FPT

2шт.

20

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

Straight, 1" MPT x 1" Hose Barb

3шт.

21

BN2296590

90 ELBOW

1-1/4" MPT x 1" Hose Barb

1шт.

22

134271C2

ELBOW,ELBOW, 90

3/4" MPT x 1" Hose Barb

1шт.

23

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" MPT x 1"

1шт.

24

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" MPT x 1" Hose Barb

1шт.

25

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" MPT x 1" Hose Barb

1шт.

26

BN310447

HOSE CLAMP

# 20 SST

6шт.

27

87630103

FITTING

Binding Ring

6шт.

28

87630098

45 ELBOW,QN Hose Shank - 1" SST x 1 1/4" Sweep 45 Degree

Boom Flange x Hose Barb

1шт.

29

87630100

REDUCER FITTING,QN 1" SST x 3/4" NPT FE Adapter

Boom Flange x Reducer

1шт.
