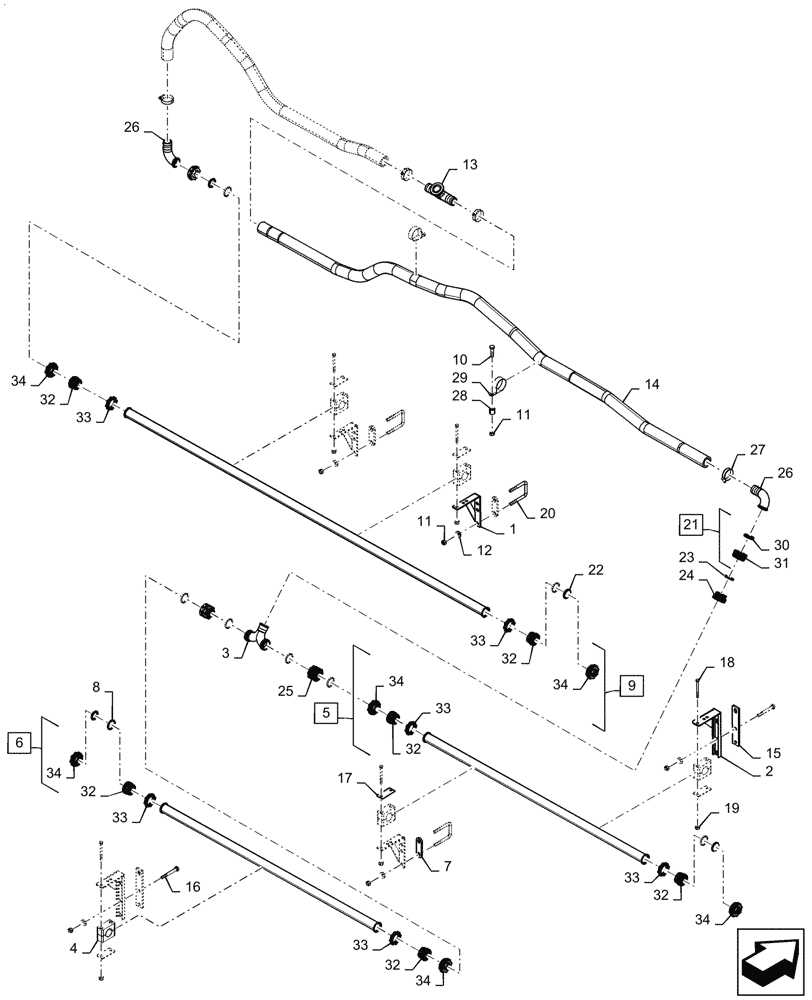

Запчасти Case IH PATRIOT 4440 (78.110.AE[32.1]) - SPRAYBAR, 120, 7 SECTION, 20/30" SPACING, RH OUTER AND BREAKAWAY, ASN YGT044000 (78) - SPRAYING

1

84490175

MOUNT

Spraybar, With Angle Brace

4шт.

2

48014359

MOUNT

Spraybar, Breakaway

2шт.

3

47739843

BRANCH TEE,QN Sweep Tee - 1 1/4" Joint Adapter X 1" SST X 1" SST

1-1/4" Flange x Two 1-1/4" Male Pipe Thread

1шт.

4

BN67054

CLAMP

Spraybar Mount

6шт.

5

47735875

SPRAYBAR,45-1/2" Long, 3 Holes, 20/30" Nozzle Spacing

Outer Breakaway, Incl 32 - 34

1шт.

6

47735876

SPRAYBAR,44-1/2" Long, 4 Holes, 20/30" Nozzle Spacing

Inner Breakaway, Incl 32 - 34

1шт.

7

47654165

SPACER

U Bolt

2шт.

8

84181302

SEALING RING

Rectangular, 1 5/16" x 1 9/16" Class 5

6шт.

9

87696869

BOOM,75" Long, 6 Holes, 20/30" Nozzle Spacing

Spraybar, Outer Boom, Incl 32 - 34

1шт.

10

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

13шт.

12

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

13

47926126

TEE

1" Flange x 1 1/4" Hose Barb x 1 1/4" Hose Barb

1шт.

14

BN29563

HOSE

Bulk 1.25" EPDM, 16' Roll

1шт.

15

48014382

BRACKET

Backer, Spraybar

2шт.

16

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

6шт.

17

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

18

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

12шт.

19

BN55359

LOCK NUT,1/4"-20, SS

12шт.

20

47650282

U-BOLT

Square, M10

4шт.

21

47739888

FITTING,1” QN SST Tube End Adapter (1.315” O.D.)

Quick Nut Female Adapter, Incl 30, 31

1шт.

22

87630099

PLUG,1" SST

Flange Cap For Spraybar

3шт.

23

353108

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

24

47739890

FITTING,QN Sweep Tee

Quick Nut, Male Adapter

1шт.

25

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupling, Spraybar End x 1 - 1/4" Female NPT, With O - Ring Flange

2шт.

26

87630097

FITTING,QN Hose Shank - 1" SST x 1 1/4" Sweep 90 Degree

Elbow, 1" Flange x 1 1/4" Hose Barb

2шт.

27

BN320156

HOSE CLAMP

#24, SST

4шт.

28

48017128

BASE PLATE

Tie

1шт.

29

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

30

47744708

FITTING,1.315" Tube X 1" SST

Plastic Ring

1шт.

31

47744705

FITTING,1.315" Tube X 1" SST

Quick Nut

1шт.

32

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar, Poly

6шт.

33

87630103

FITTING

Binding Ring, Spraybar, Poly

6шт.

34

87630105

NUT

Nut, Quick, Spraybar, Poly

6шт.
