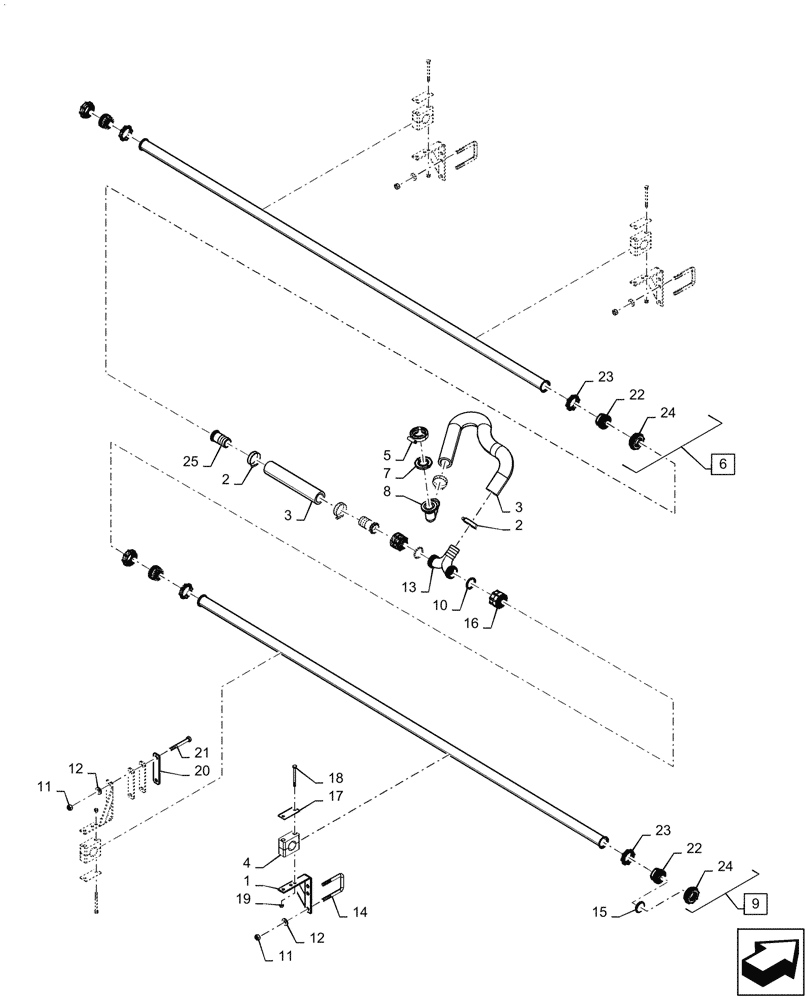

Запчасти Case IH PATRIOT 4440 (78.110.AE[27.1]) - SPRAYBAR, 120, 7 SECTION, 20"/30" SPACING, LH MID BOOM, ASN YGT044000 (78) - SPRAYING

1

84490175

MOUNT

Spraybar

4шт.

2

BN320156

HOSE CLAMP

#24, SST

2шт.

3

BN29563

HOSE

Bulk 1.25" EPDM, 16' Roll

1шт.

4

BN67054

CLAMP

Spraybar Mount

8шт.

5

BN303203

CLAMP,1" Flange

1шт.

6

48026438

SPRAYBAR

84 1/2" Long, 6 Hole 20/30" Spacing, Incl 22 - 24

1шт.

7

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1шт.

8

87575511

FITTING,1" Flange x 1-1/4" 90 Degree Hose Barb Elbow

1шт.

9

47919024

SPRAYBAR

Spraybar, Incl 22 - 24

1шт.

10

84181302

SEALING RING

Rectangular, 1 5/16" x 1 9/16" Class 5

2шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

16шт.

12

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

13

87630101

FITTING,Tee, PP

1 - 1/4" MPT x 1 - 1/4" MPT x 1 - 1/4" HB

1шт.

14

47650282

U-BOLT

M 10, Square

4шт.

15

87630099

PLUG,1" SST

Cap For Spraybar

2шт.

16

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupling

2шт.

17

BN309483

PLATE

Clamp, Top

4шт.

18

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

19

BN55359

LOCK NUT,1/4"-20, SS

8шт.

20

87484194

PLATE

Backer

2шт.

21

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

22

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar

2шт.

23

87630103

FITTING

Binding Ring, Spraybar

2шт.

24

87630105

NUT

Nut, Quick, Spraybar

2шт.

25

87630096

FITTING,QN Hose Shank - 1" SST X 1 1/4" Straight Shank

1" Flange x 1 1/4" Hose Barb

2шт.
