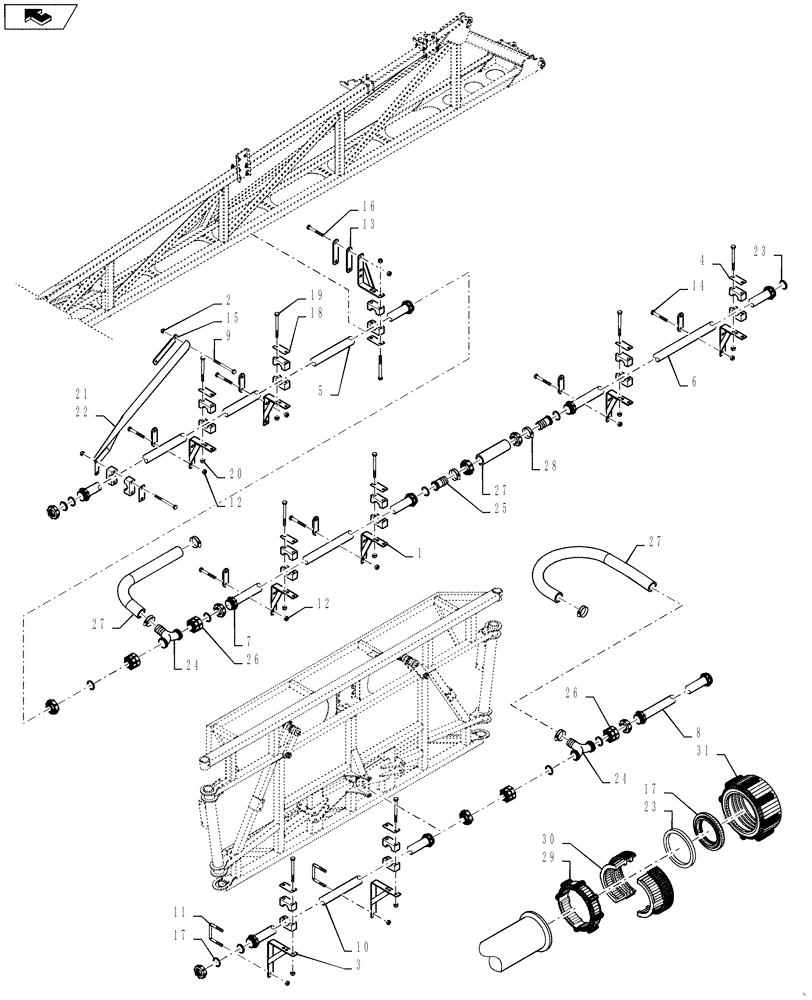

Запчасти Case IH PATRIOT 4440 (78.110.AE[23]) - SPRAYBAR, 120, 7 SECTION, OFF CENTER, 20"/30" SPACING, CENTER AND INNER SECTION (78) - SPRAYING

1

84490175

MOUNT

Spraybar

14шт.

2

353308

NUT,M6 x 1.0, Cl 8

4шт.

3

84511418

MOUNT

Spraybar, Center Section

4шт.

4

BN67054

CLAMP

1.315" OD

20шт.

5

87696872

BOOM,106" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 106" Long

2шт.

6

87696868

BOOM,82" Long, 5 Holes, 20/30" Nozzle Spacing

Spraybar, 5 Nozzles, 20"/30" Nozzle Spacing, 82" Long

2шт.

7

87696870

BOOM,85" Long, 6 Holes, 20/30" Nozzle Spacing

Spraybar, 6 Nozzles, 20"/30" Nozzle Spacing, 85" Long

2шт.

8

87696867

BOOM,65" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 65" Long

1шт.

9

86980370

BOLT,Hex, M6 x 90mm, Cl 8.8

M6-1 X 90, 8.8, DOR

4шт.

10

87696869

BOOM,75" Long, 6 Holes, 20/30" Nozzle Spacing

Spraybar, 6 Nozzles, 20"/30" Nozzle Spacing, 75" Long

1шт.

11

87586548

U-BOLT

Square, M10 x 64 mm id x 64

4шт.

12

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

36шт.

13

87484194

PLATE

Backer, Spraybar Mount

16шт.

14

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

M10 1.5 X 100, 8.8, DOR

24шт.

15

87673096

STRAP

Backer, 4 1/2” Tube

2шт.

16

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

17

84181302

SEALING RING

SEALRING Rectangular, 1 5/16" x 1 9/16" Class 5

22шт.

18

BN309483

PLATE

Clamp Top, Single Clamp

20шт.

19

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

40шт.

20

BN55359

LOCK NUT,1/4"-20, SS

40шт.

21

87672998

MOUNT

Spraybar, Extended, LH

1шт.

22

87672999

MOUNT

Spraybar, Extended, RH

1шт.

23

87630099

PLUG,1" SST

Flange Cap For Spraybar, Poly

6шт.

24

87630101

FITTING,Tee, PP

1-1/4" MPT x 1-1/4" MPT x 1-1/4 Hose Barb, Poly

3шт.

25

87630096

FITTING,QN Hose Shank - 1" SST X 1 1/4" Straight Shank

Straight, 1" Flange x 1-1/4" Hose Barb, Poly

4шт.

26

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupling, Spraybar End x 1-1/4" Female NPT, With O-Ring Flange, Poly

6шт.

27

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

1шт.

28

BN320156

HOSE CLAMP

#24, Stainless Steel

10шт.

29

87630103

FITTING

Binding Ring, Spraybar, Poly

2шт.

30

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar, Poly

2шт.

31

87630105

NUT

Nut, Quick, Spraybar, Poly

2шт.
