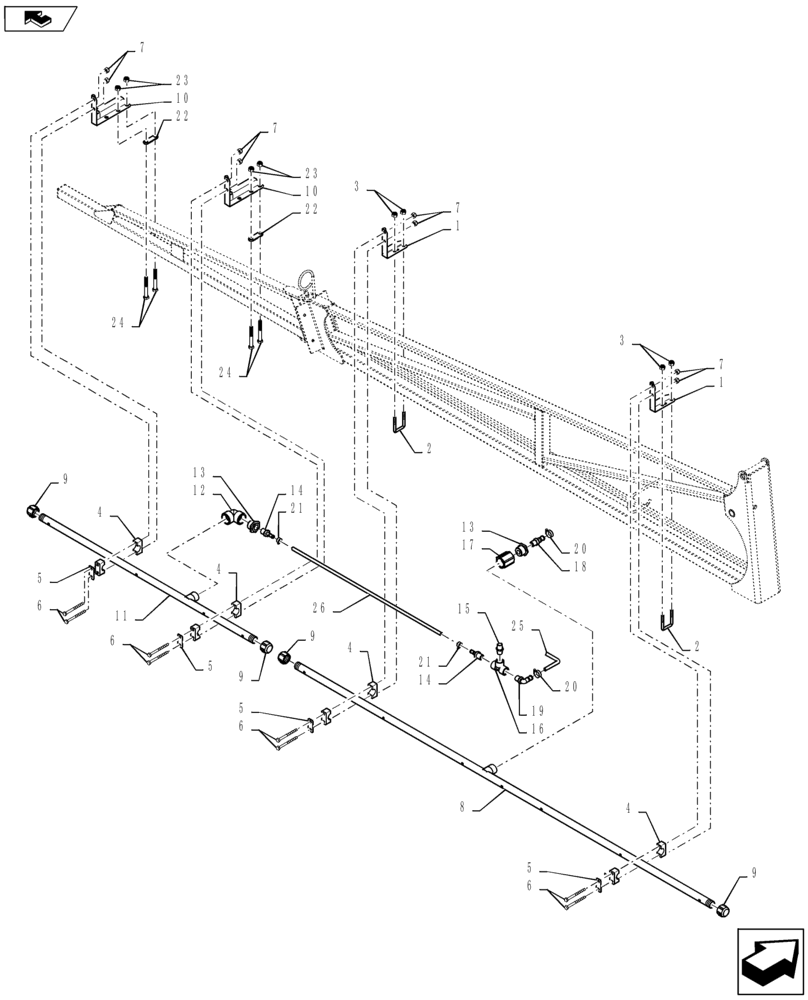

Запчасти Case IH PATRIOT 4440 (78.110.AE[21]) - SPRAYBAR, 90, 6 SECTION, LO-FLOW, OFF CENTER, 20" NOZZLE SPACING, OUTER SECTION (78) - SPRAYING

1

BN323957

BRACKET

Spraybar Mount

4шт.

2

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

4шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

4

BN67054

CLAMP

1.315" OD

8шт.

5

BN309483

PLATE

Clamp Top, Single Clamp

8шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

16шт.

7

BN55359

LOCK NUT,1/4"-20, SS

16шт.

8

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

2шт.

9

BN73606

CAP

1" NPT, Poly Pipe

8шт.

10

84532753

MOUNT

Outer Spraybar

4шт.

11

87266669

PIPE,45" Long, 3 Holes, 20" Nozzle Spacing

Spraybar, 3 Nozzles, 20" Nozzle Spacing, Stainless Steel, 45" Long

2шт.

12

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

2шт.

13

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

4шт.

14

BN73568

FITTING

3/4" NPT x 1/2" Hose Barb, Poly

4шт.

15

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

2шт.

16

BN73560

TEE

3/4" NPT, Poly

2шт.

17

BN305269

COUPLING

1-1/4" NPT, Poly

2шт.

18

BN73561

FITTING

3/4" NPT x 3/4" Hose Barb, Poly

2шт.

19

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, Poly

2шт.

20

BN310446

HOSE CLAMP

#12, Stainless Steel

4шт.

21

BN324022

HOSE CLAMP

#8, Stainless Steel

4шт.

22

BN308039

PLATE

Spacer, Red

4шт.

23

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

24

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

8шт.

25

87269953

HOSE

3/4" x 22", EPDM

2шт.

26

87269954

HOSE

1/2" x 91", EPDM

2шт.
