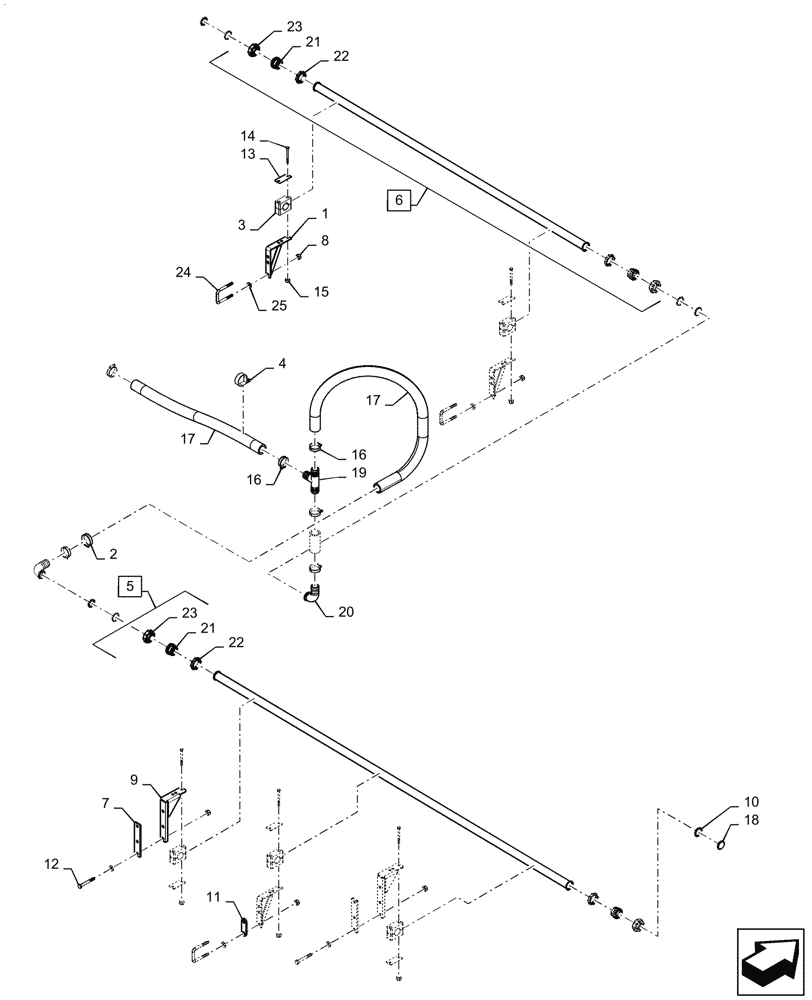

Запчасти Case IH PATRIOT 4440 (78.110.AE[20.1]) - SPRAYBAR, 120, 7 SECTION, 20" SPACING, RH OUTER & BREAKAWAY, U BOLT SPRAYBAR MOUNTS (78) - SPRAYING

1

84490175

MOUNT

Spraybar

3шт.

2

BN310448

HOSE CLAMP

#28, SST

2шт.

3

BN67054

CLAMP

Spraybar

8шт.

4

515-23508

CLAMP,2", Insul, 3/8" Bolt

2шт.

5

87671763

BOOM,85" Long, 5 Holes, 20" Nozzle Spacing

Spraybar, Incl 21 - 23

1шт.

6

87671764

BOOM,64-1/2" Long, 4 Holes, 20" Nozzle Spacing

Spraybar, Incl 21 - 23

1шт.

7

87707554

BRACKET, SUPPORTING

Backer, Spraybar

4шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

24шт.

9

84490178

MOUNT

Spraybar

2шт.

10

84181302

SEALING RING

Rectangular, 1 - 5/16" x 1 - 9/16" Class 5

4шт.

11

47654165

SPACER

U Bolt

1шт.

12

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

6шт.

13

BN309483

PLATE

Clamp Top

5шт.

14

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

10шт.

15

BN55359

LOCK NUT,1/4"-20, SS

10шт.

16

BN320156

HOSE CLAMP

#24, SST

6шт.

17

BN29563

HOSE

Bulk 1.25" EPDM, 16' Roll

1шт.

18

87630099

PLUG,1" SST

Cap For Spraybar

2шт.

19

BN317579

TEE

Hose Barb, 1 1/4"

1шт.

20

87630097

FITTING,QN Hose Shank - 1" SST x 1 1/4" Sweep 90 Degree

Elbow, 1" Flange x 1 1/4" Hose Barb

2шт.

21

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar

2шт.

22

87630103

FITTING

Binding Ring, Spraybar

2шт.

23

87630105

NUT

Nut, Quick, Spraybar

2шт.

24

47650282

U-BOLT

M10, 3 1/4" Long x 2 3/8" Wide

3шт.

25

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

24шт.
