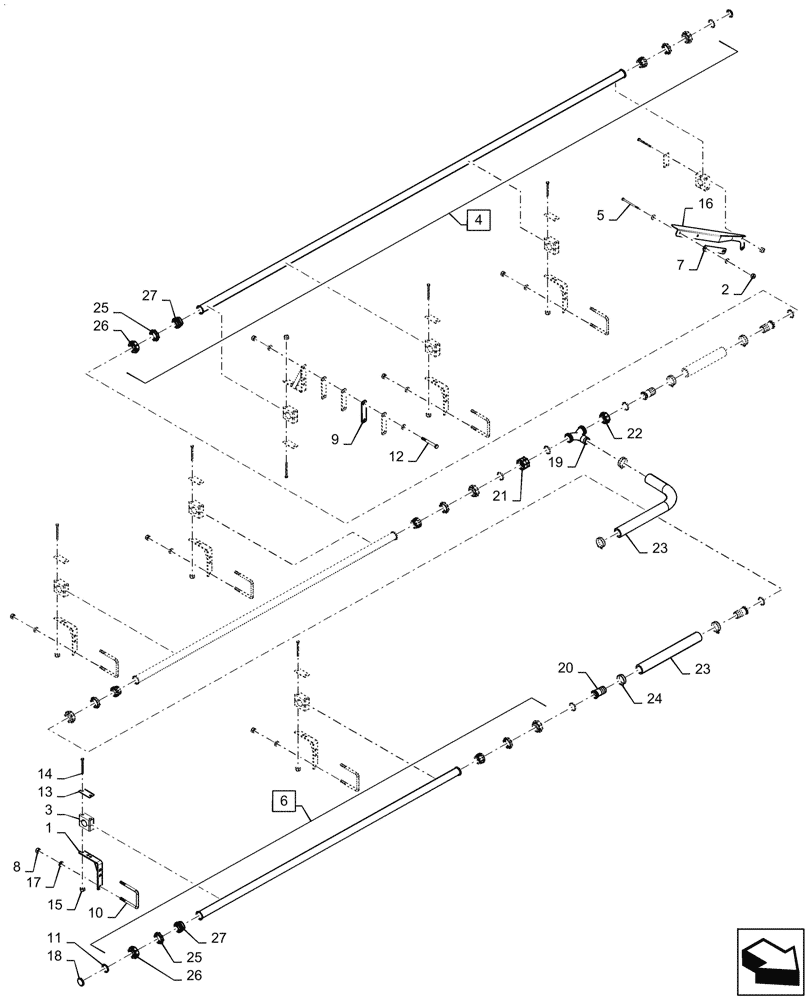

Запчасти Case IH PATRIOT 4440 (78.110.AE[18.1]) - SPRAYBAR, 120, 7 SECTION, 20", SPACING, RH INNER BOOM, U BOLT SPRAYBAR MOUNTS, ALL SERIAL NUMBERS (78) - SPRAYING

1

84490175

MOUNT

Spraybar

7шт.

2

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

3

BN67054

CLAMP

Boom

8шт.

4

87671762

BOOM,106" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, Incl 25 - 27

1шт.

5

86980370

BOLT,Hex, M6 x 90mm, Cl 8.8

DOR

2шт.

6

87671764

BOOM,64-1/2" Long, 4 Holes, 20" Nozzle Spacing

Spraybar, Incl 25 - 27

2шт.

7

87673096

STRAP

Backer, 4 1/2” Tube

1шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

14шт.

9

87484194

PLATE

Backer, Spraybar Mount

1шт.

10

47654099

U-BOLT

M10, 4 1/4" Long x 3 1/2" Wide

6шт.

11

84181302

SEALING RING

Spraybar

6шт.

12

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

13

BN309483

PLATE

Clamp Top, Single Clamp

8шт.

14

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

16шт.

15

BN55359

LOCK NUT,1/4"-20, SS

16шт.

16

84542725

MOUNT

Spraybar, Extended, RH, Serial Range: -YGT044000

1шт.

16

48020744

MOUNT

Spraybar, Extended, RH, Start Serial: YGT044001

1шт.

17

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

14шт.

18

87630099

PLUG,1" SST

Flange Cap For Spraybar

4шт.

19

87630101

FITTING,Tee, PP

1 1/4" MPT x 1 1/4" MPT x 1 1/4" Hose Barb

2шт.

20

87630096

FITTING,QN Hose Shank - 1" SST X 1 1/4" Straight Shank

Hose Barb

3шт.

21

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupling, Spraybar End, 1 - 1/4" Female NPT, With O - Ring Flange

1шт.

22

87638736

FITTING,QN 1" - Nut

2шт.

23

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

1шт.

24

BN320156

HOSE CLAMP

#24, SST

10шт.

25

87630103

FITTING

Binding Ring, Spraybar

2шт.

26

87630105

NUT

Nut, Quick, Spraybar

2шт.

27

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar

2шт.
