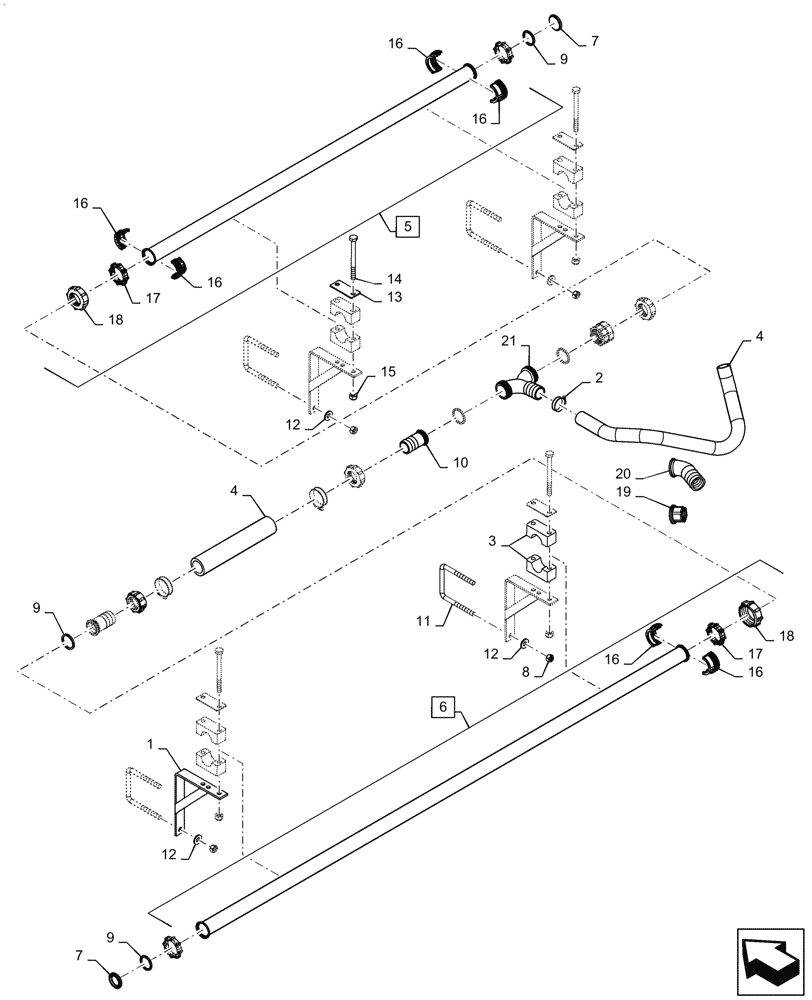

Запчасти Case IH PATRIOT 4440 (78.110.AE[15.1]) - SPRAYBAR, 120, 7 SECTION, 20" SPACING, LH MID BOOM U BOLT MOUNTS, BSN YGT044001 (78) - SPRAYING

1

84490175

MOUNT

Spraybar

4шт.

2

BN320156

HOSE CLAMP

#24, SST

6шт.

3

BN67054

CLAMP

1.315" OD

8шт.

4

BN29563

HOSE

Bulk 1.25" EPDM, Discharge, 16' Roll

1шт.

5

87671763

BOOM,85" Long, 5 Holes, 20" Nozzle Spacing

Spraybar, Incl 16 - 18

1шт.

6

87671764

BOOM,64-1/2" Long, 4 Holes, 20" Nozzle Spacing

Spraybar, Incl 16 - 18

1шт.

7

87630099

PLUG,1" SST

Flange Cap For Spraybar, Poly

2шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

9

84181302

SEALING RING

Rectangular, 1 - 5/16" x 1 - 9/16" Class 5

4шт.

10

87638736

FITTING,QN 1" - Nut

Nut, Quick, 1 - 1/4" NPT, Poly

1шт.

11

47650282

U-BOLT

M10, 3 1/4" Long x 2 3/8" Wide

4шт.

12

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

13

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

14

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

15

BN55359

LOCK NUT,1/4"-20, SS

8шт.

16

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar, Poly

2шт.

17

87630103

FITTING

Binding Ring, Spraybar, Poly

2шт.

18

87630105

NUT

Nut, Quick, Spraybar, Poly

2шт.

19

87630100

REDUCER FITTING,QN 1" SST x 3/4" NPT FE Adapter

1" Flange x 3/4" Female NPT, Poly, Available Additional Fittings

1шт.

20

87630098

45 ELBOW,QN Hose Shank - 1" SST x 1 1/4" Sweep 45 Degree

1" Flange x 1 - 1/4" Hose Barb, Poly, Available Additional Fittings

1шт.

21

87630101

FITTING,Tee, PP

1 - 1/4" MPT x 1 - 1/4" MPT x 1 - 1/4" HB

1шт.
