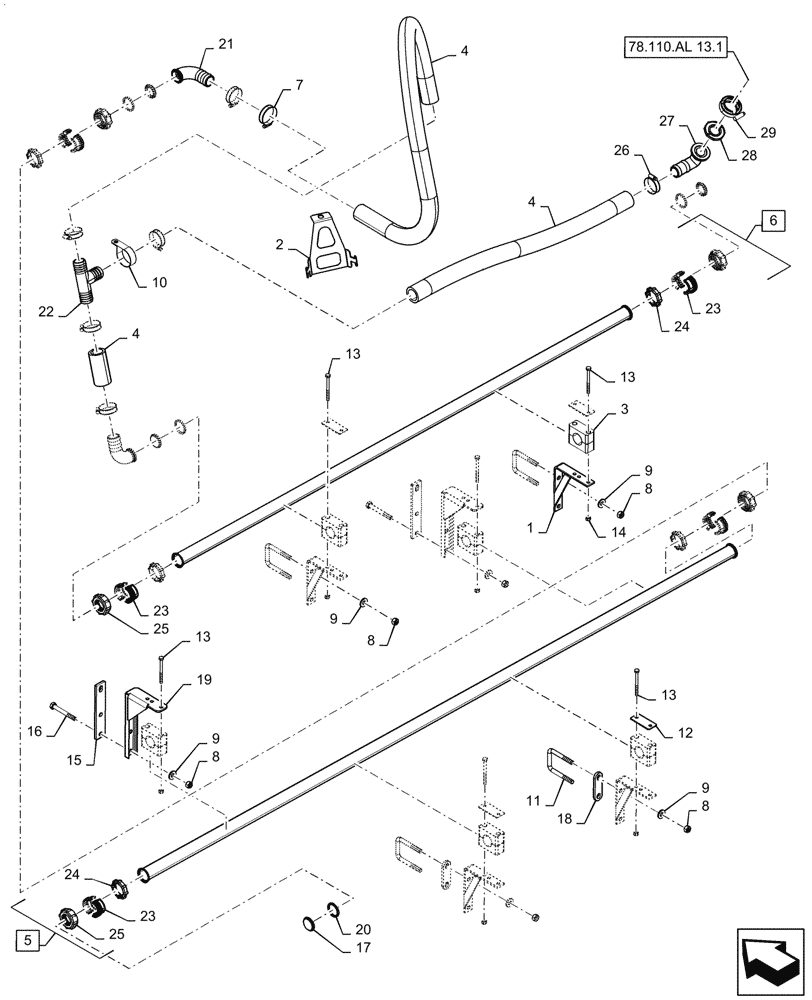

Запчасти Case IH PATRIOT 4440 (78.110.AE[14.2]) - SPRAYBAR, 120, 7 SECTION, 20" SPACING, LH OUTER AND BREAKAWAY, U BOLT SRAYBAR MOUNTS ASN YGT044000 (78) - SPRAYING

1

84490175

MOUNT

Spraybar

4шт.

QTY 3 Used Before SN YGT044001

1шт.

2

84265004

RETAINER

Breakaway Hose

1шт.

Used on MY 16 and Later

1шт.

3

BN67054

CLAMP

Spraybar

6шт.

4

BN29563

HOSE

1 1/4" EPDM, Bulk, 16' Roll

1шт.

5

87671763

BOOM,85" Long, 5 Holes, 20" Nozzle Spacing

Breakaway, Incl 23 - 25

1шт.

6

87671764

BOOM,64-1/2" Long, 4 Holes, 20" Nozzle Spacing

Outer Boom, Incl 23 - 25

1шт.

7

BN310448

HOSE CLAMP

#28, SST

1шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

14шт.

9

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

14шт.

10

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

11

47650282

U-BOLT

M10, 3 1/4" Wide x 2 3/8" Long

4шт.

12

BN309483

PLATE

Cover

4шт.

13

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

12шт.

14

BN55359

LOCK NUT,1/4"-20, SS

12шт.

15

48014382

BRACKET

3 Hole Backer

2шт.

16

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

6шт.

17

87630099

PLUG,1" SST

Flange Cap

2шт.

18

47654165

SPACER

2 Hole U Bolt

2шт.

19

48014359

MOUNT

Spraybar

2шт.

20

84181302

SEALING RING

Rectangular, 1 - 5/16" x 1 - 9/16" Class 5

4шт.

21

87630097

FITTING,QN Hose Shank - 1" SST x 1 1/4" Sweep 90 Degree

90°, Spraybar to 1 1/4" Hose Barb

2шт.

22

BN317579

TEE

1 1/4" Hose Barb

1шт.

23

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve

4шт.

24

87630103

FITTING

Binding Ring

4шт.

25

87630105

NUT

Nut, Quick

4шт.

26

BN320156

HOSE CLAMP

#24, SST

4шт.

27

87575511

FITTING,1" Flange x 1-1/4" 90 Degree Hose Barb Elbow

1шт.

28

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1шт.

29

BN303203

CLAMP,1" Flange

1шт.
