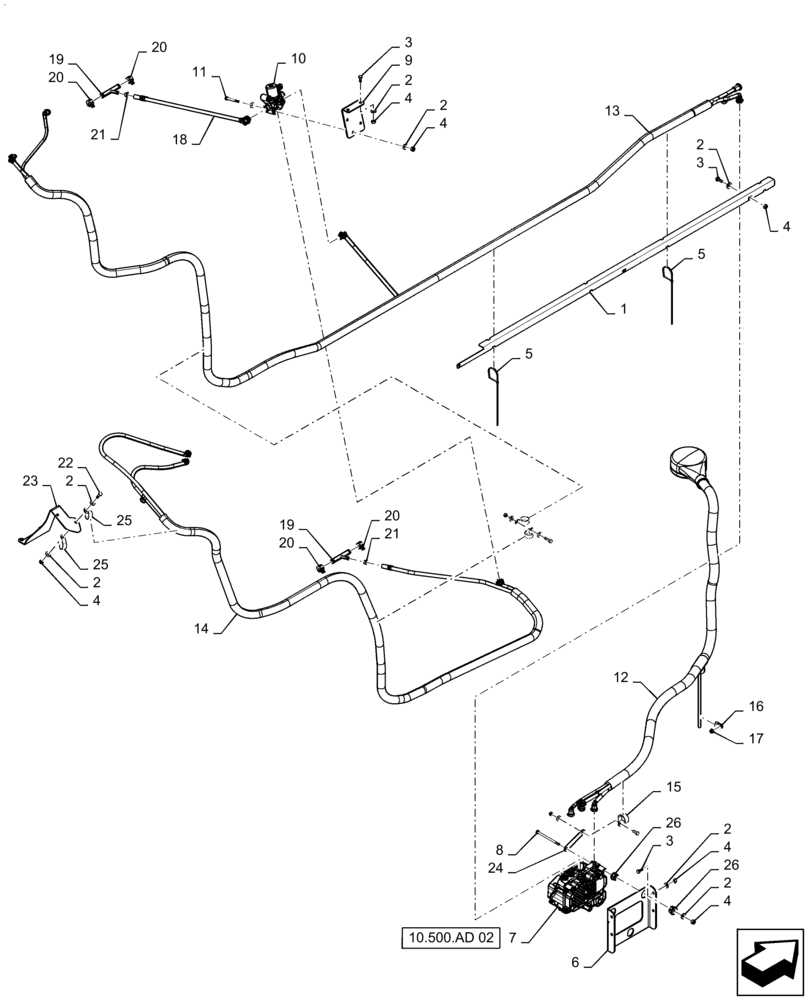

Запчасти Case IH PATRIOT 4440 (10.500.AD[01]) - DEF LINES ASSY, BSN YGT044001 (10) - ENGINE

1

84390017

MOUNT

DEF Lines

1шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

30шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

21шт.

5

87557084

CABLE TIE,14"

14 Inch

4шт.

6

47530364

MOUNT

Supply Module

1шт.

7

47565939

ECU

Denox 2.2 Supply

1шт.

7

47565939R

REMAN ELECT CONTROL

Denox 2.2 Supply

1шт.

7

47565939C

CORE-ELECTRONIC CONT

Return Number

1шт.

8

86980392

BOLT,Hex, M8 x 120mm, Cl 8.8

M8 x 120, CL 8.8 DOR

3шт.

9

84572226

MOUNT

Heater Valve

1шт.

10

84483089

HEATER

Valve

1шт.

11

86980387

BOLT,Hex, M8 x 70mm, Cl 8.8

M8 x 70, CL 8.8 DOR

3шт.

12

47573544

HOSE

DEF Buncle, Supply

1шт.

13

47573547

HOSE

Assy, DEF, Pressure

1шт.

14

47381979

HOSE

Assy, DEF Bundle, Doozer Cooling

1шт.

15

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

16

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

17

87344227

SERRATED NUT

Hex Flange, M8 SPL DOR

1шт.

18

47390034

HOSE

DEF Coolant, Supply

1шт.

19

84381516

TEE

DEF Heater

2шт.

20

1954736C1

HOSE CLAMP,#24

CTB

4шт.

21

1348264C1

HOSE CLAMP

Constant Tension

2шт.

22

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

23

47543380

SUPPORT

DEF Bundle

1шт.

24

47404789

SUPPORT

DEF Bundle

2шт.

25

87016869

CLAMP,31.7mm, Coat, 8.7mm Bolt Hole, P Type

9шт.

26

2855150

INSULATOR BLOCK

Bushing, Rubber

6шт.
