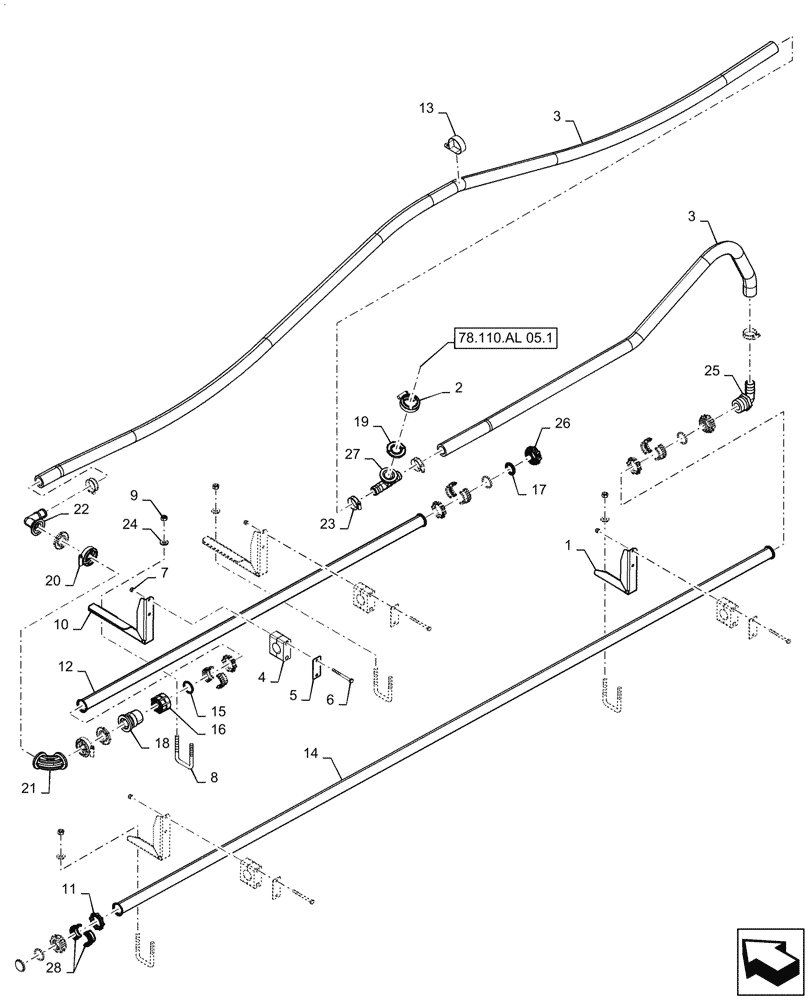

Запчасти Case IH PATRIOT 4440 (78.110.AE[06.2]) - SPRAYBAR, 90, 5 SEC, 20/30 SPACING, LH OUTER & BREAKAWAY, ASN YGT044000 (78) - SPRAYING

1

BN323957

BRACKET

Spraybar Mount

2шт.

2

BN303203

CLAMP,1" Flange

1" Flange

1шт.

3

BN53479

HOSE,1.00" ID BULK

1шт.

4

BN67054

CLAMP

1.315" OD

4шт.

5

BN309483

PLATE

Top

4шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

47650282

U-BOLT

SQ Shape, M10 THD, 82L x 62W

4шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

10

84532753

MOUNT

Spraybar

2шт.

11

87630103

FITTING

Binding Ring

2шт.

12

48071220

SPRAYBAR

Spraybar, 4 Nozzles, 20 / 30" Nozzle Spacing, 55" Long

1шт.

13

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

14

87696872

BOOM,106" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar

1шт.

15

84181302

SEALING RING

Rectangular, 1-5/16 x 1-9/16 Class 5

4шт.

16

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

1-1/4" FPT x 1.83 - 10 ACME

1шт.

17

87630099

PLUG,1" SST

Flange Cap For Spraybar, Poly

2шт.

18

406146A1

FITTING,1" Flange x 1-1/4" Male Thread

1шт.

19

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1" Flange

1шт.

20

BN303203

CLAMP,1" Flange

1шт.

21

47917419

FITTING,90 Degree 1" Flange

1шт.

22

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

1шт.

23

BN310447

HOSE CLAMP

# 20

4шт.

24

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

25

BN2296590

90 ELBOW

1-1/4" MPT x 1" Hose Barb

1шт.

26

87630105

NUT

Nut, Quick, Spraybar

2шт.

27

47841653

TEE

1" Flange x 1" Hose Barb

1шт.

28

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar

4шт.
