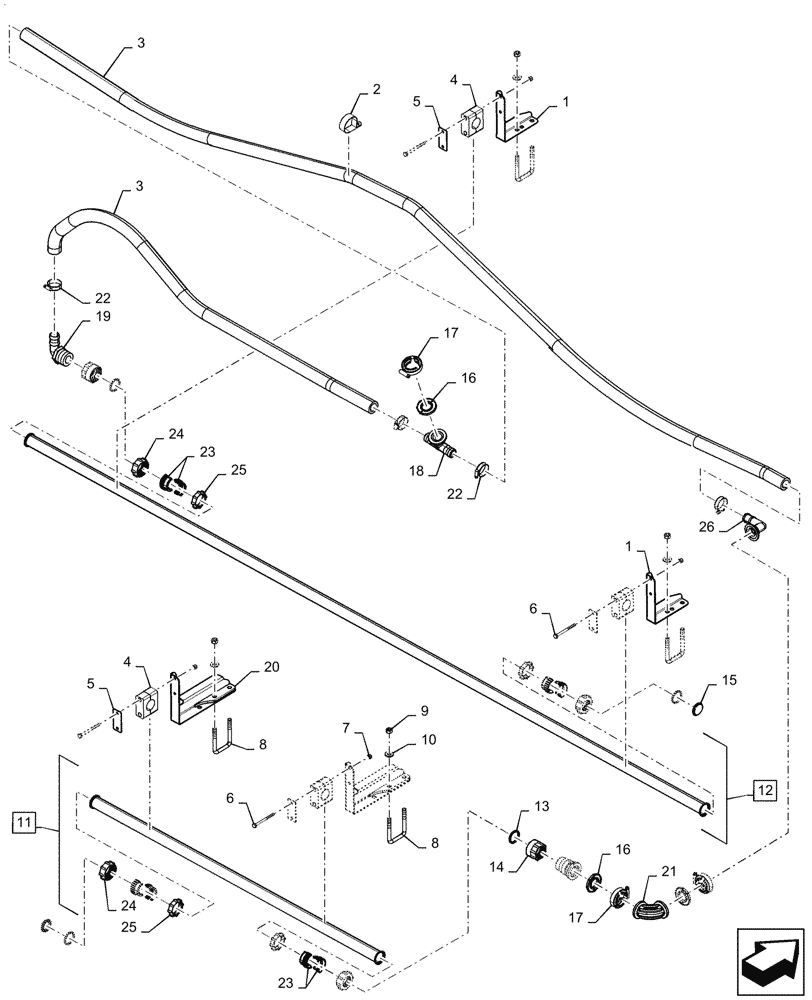

Запчасти Case IH PATRIOT 4440 (78.110.AE[05.2]) - SPRAYBAR, 90, 5 SECTION, 20" SPACING, RH OUTER AND BREAKAWAY, ASN YGT044000 (78) - SPRAYING

1

BN323957

BRACKET

Spraybar Mount

2шт.

2

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

3

BN53479

HOSE,1.00" ID BULK

30' Roll

1шт.

4

BN67054

CLAMP

Spraybar

4шт.

5

BN309483

PLATE

Top

4шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

10шт.

7

BN55359

LOCK NUT,1/4"-20, SS

10шт.

8

47650282

U-BOLT

M10, 3 1/4" x 2 3/8"

4шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

10

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

11

84159733

BOOM,20/30" Nozzle Spacing

Spraybar, 3 Nozzles, 20" Nozzle Spacing, 44-1/2" Long, Incl 23 - 25

1шт.

12

87671762

BOOM,106" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, Incl 23 - 25

1шт.

13

84181302

SEALING RING

Rectangular, 1-5/16 x 1-9/16 Class 5

4шт.

14

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

1-1/4" FPT x 1.83 - 10 ACME

2шт.

15

87630099

PLUG,1" SST

Flange Cap For Spraybar, Poly

2шт.

16

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

3шт.

17

BN303203

CLAMP,1" Flange

3шт.

18

47841653

TEE

1" Hose Barb x 1" Hose Barb x 1" Flange

1шт.

19

BN2296590

90 ELBOW

1-1/4" MPT x 1" Hose Barb

1шт.

20

84532753

MOUNT

Spraybar

2шт.

21

47917419

FITTING,90 Degree 1" Flange

1шт.

22

BN310447

HOSE CLAMP

#20

4шт.

23

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar

4шт.

24

87630105

NUT

Nut, Quick, Spraybar

4шт.

25

87630103

FITTING

Binding Ring, Spraybar

4шт.

26

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

1шт.
