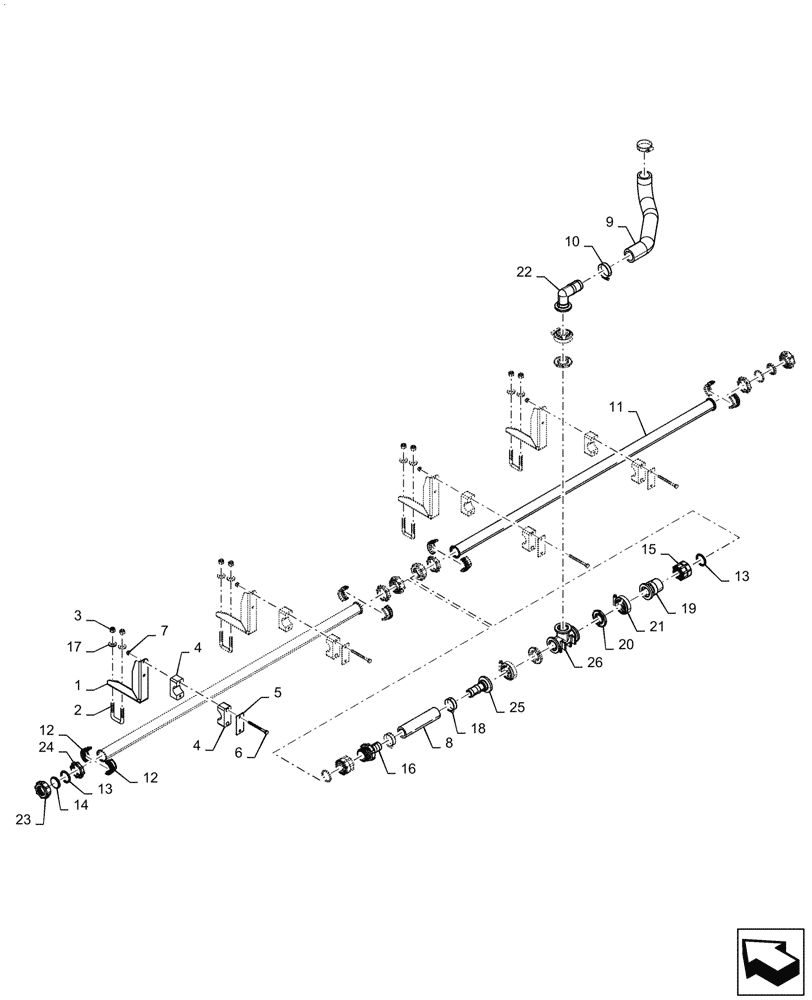

Запчасти Case IH PATRIOT 4440 (78.110.AE[03.1]) - SPRAYBAR, 90, 5 SECTION, 20" SPACING, CENTER, ASN YGT042518, BSN YGT044001 (78) - SPRAYING

1

BN323957

BRACKET

Spraybar Mount

4шт.

2

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

4шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

4

BN67054

CLAMP

1.315" OD

4шт.

5

BN309483

PLATE

Top

4шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

BN53479

HOSE,1.00" ID BULK

1шт.

9

BN29563

HOSE

1-1/4" ID Bulk

1шт.

10

BN320156

HOSE CLAMP

# 24, SST

2шт.

11

84159733

BOOM,20/30" Nozzle Spacing

Spraybar, 3 Nozzles, 20" Nozzle Spacing, 44 1/2" Long, Incl 12, 23, 24

2шт.

12

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar

4шт.

13

84181302

SEALING RING

Rectangular, 1-5/16" x 1-9/16", Class 5

4шт.

14

87630099

PLUG,1" SST

Flange Cap For Spraybar

2шт.

15

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

1-1/4" FPT x 1.83" - 10 ACME

2шт.

16

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1шт.

17

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

18

BN310447

HOSE CLAMP

#20

1шт.

19

406146A1

FITTING,1" Flange x 1-1/4" Male Thread

1шт.

20

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

3шт.

21

BN303203

CLAMP,1" Flange

3шт.

22

87575511

FITTING,1" Flange x 1-1/4" 90 Degree Hose Barb Elbow

1" NPT x 1-1/4" Hose Barb

1шт.

23

87630105

NUT

Nut, Quick, Spraybar

4шт.

24

87630103

FITTING

Binding Ring, Spraybar

4шт.

25

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1шт.

26

BN304316

FITTING,1" Flange x 1" Flange x 1" Flange, Poly

1шт.
