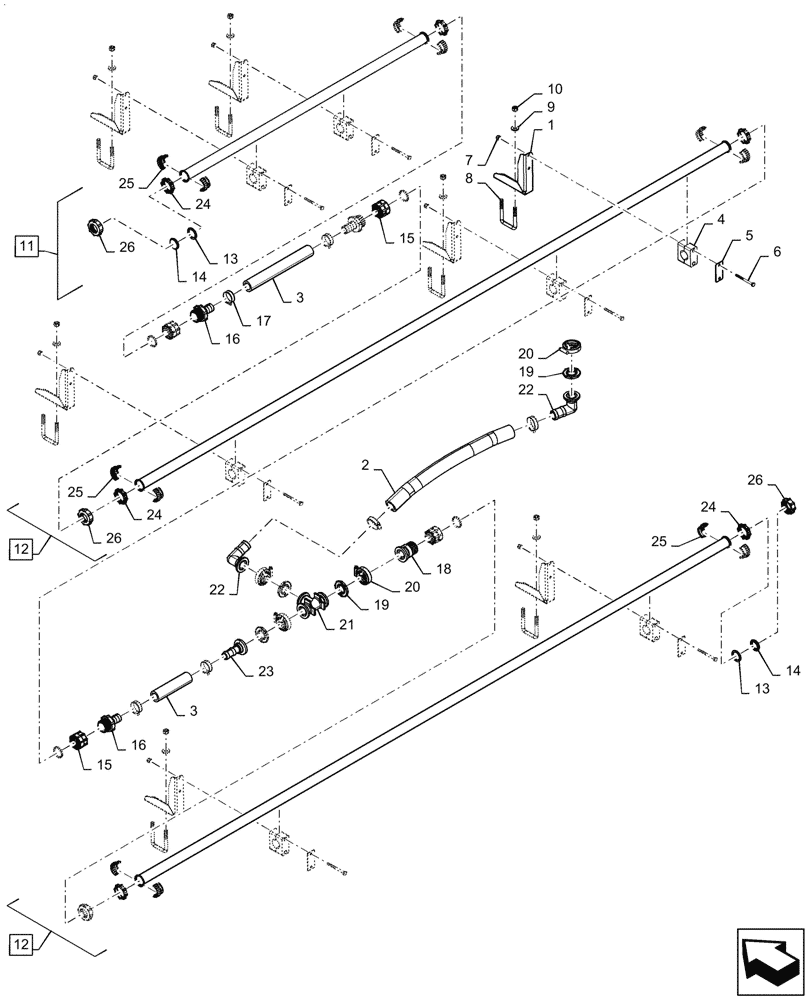

Запчасти Case IH PATRIOT 4440 (78.110.AE[02.2]) - SPRAYBAR, 90, 5 SECTION 20" SPACING LH MIDDLE, ASN YGT044000 (78) - SPRAYING

1

BN323957

BRACKET

Spraybar Mount

6шт.

2

BN29563

HOSE

1 1/4" Bulk, 16' Roll

1шт.

3

BN53479

HOSE,1.00" ID BULK

30' Roll

1шт.

4

BN67054

CLAMP

Spraybar

6шт.

5

BN309483

PLATE

Top

6шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

12шт.

7

BN55359

LOCK NUT,1/4"-20, SS

12шт.

8

47650282

U-BOLT

Spraybar Mount, Square Shape, M10, 82L x 62W

6шт.

9

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

11

84159733

BOOM,20/30" Nozzle Spacing

Spraybar, 3 Nozzles, 20" Nozzle Spacing, 44-1/2" Long, Incl 24 - 26

1шт.

12

87671762

BOOM,106" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, Incl 24 - 26

2шт.

13

84181302

SEALING RING

Rectangular, 1-5/16" x 1-9/16" Class 5

6шт.

14

87630099

PLUG,1" SST

Flange Cap For Spraybar

2шт.

15

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

1-1/4" FPT x 1.83" - 10 ACME

4шт.

16

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb

2шт.

17

BN310447

HOSE CLAMP

#20

4шт.

18

406146A1

FITTING,1" Flange x 1-1/4" Male Thread

1шт.

19

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

4шт.

20

BN303203

CLAMP,1" Flange

4шт.

21

BN304316

FITTING,1" Flange x 1" Flange x 1" Flange, Poly

1шт.

22

87575511

FITTING,1" Flange x 1-1/4" 90 Degree Hose Barb Elbow

2шт.

23

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1шт.

24

87630103

FITTING

Binding Ring, Spraybar

2шт.

25

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar

2шт.

26

87630105

NUT

Nut, Quick, Spraybar

2шт.
