(78.110.AD[11.1]) - 2" MANIFOLD DRAIN VALVE

Запчасти Case IH PATRIOT 4440 (78.110.AD[11.1]) - 2" MANIFOLD DRAIN VALVE (78) - SPRAYING

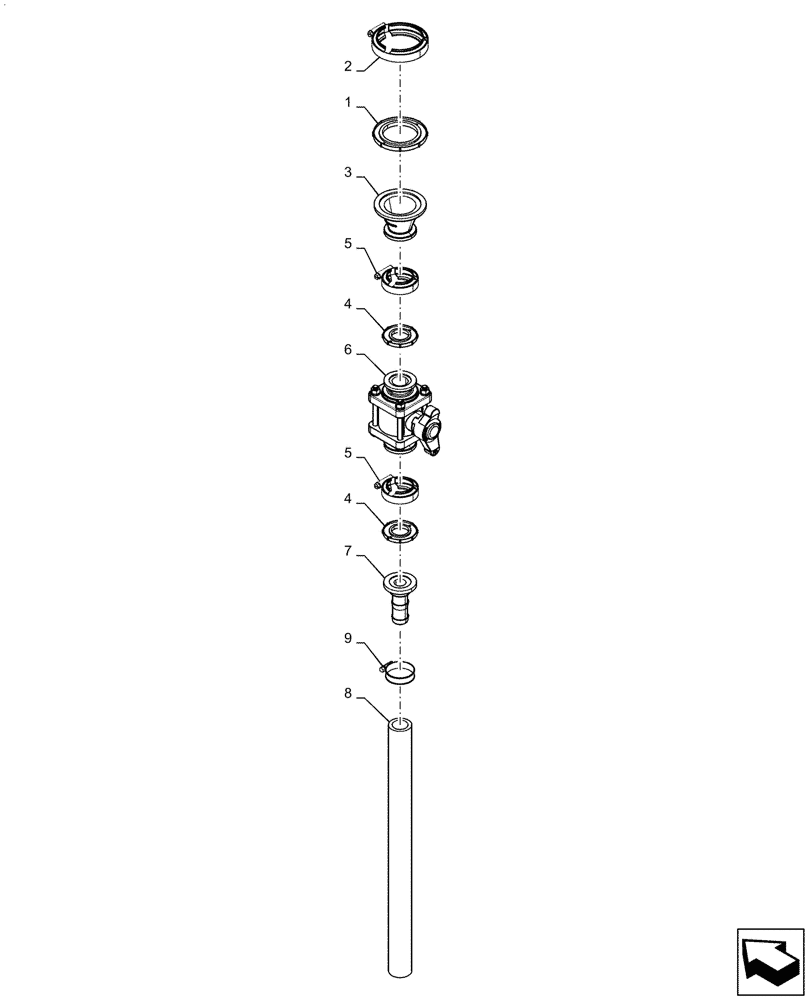

Схема запчастей Case IH PATRIOT 4440 - (78.110.AD[11.1]) - 2" MANIFOLD DRAIN VALVE (78) - SPRAYING
6
4
1
4
2
3
5
9
8
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

1шт.

2

BN313773

CLAMP,2" Full Port

1шт.

3

47899179

REDUCER,2" Full Port x 1" Reducer Flange

2" Flange x 1" Flange

1шт.

4

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

2шт.

5

BN303203

CLAMP,1" Flange

2шт.

6

BN304329

VALVE,1"FP Valve w/C-Flng & T Handle

1" Flange

1шт.

7

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1шт.

8

BN321652

HOSE

1" x 19"

1шт.

9

BN320156

HOSE CLAMP

# 24 SST

1шт.
