(10.500.AA[01]) - DEF TANK MOUNTING

Запчасти Case IH PATRIOT 4440 (10.500.AA[01]) - DEF TANK MOUNTING (10) - ENGINE

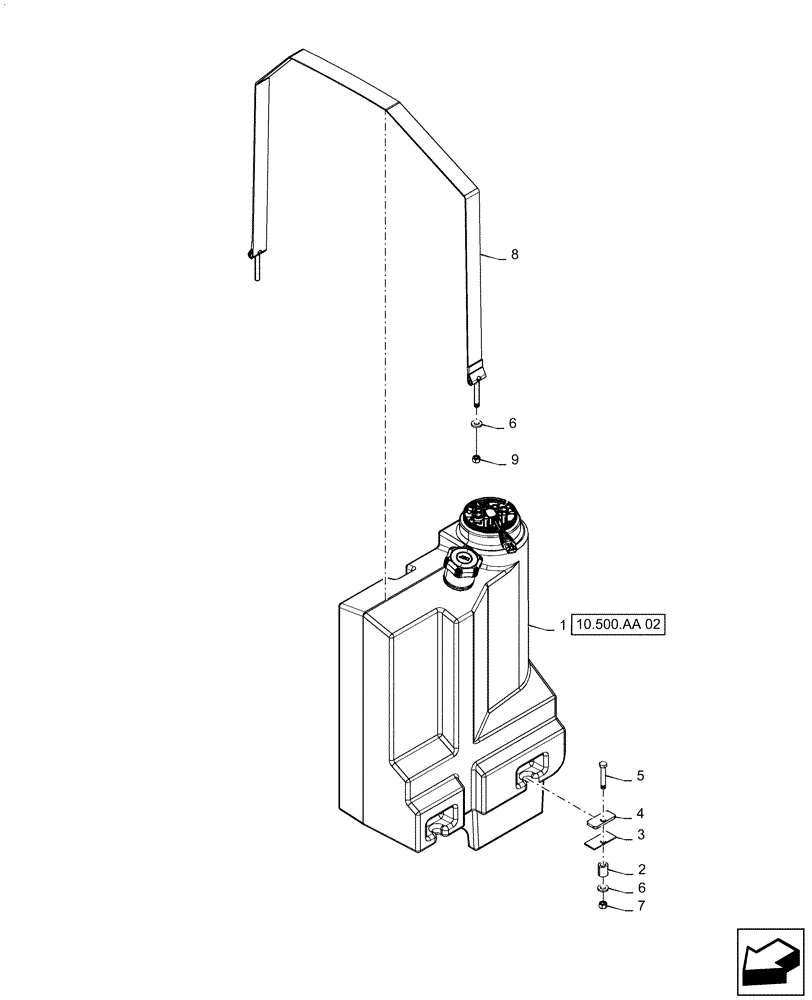

Схема запчастей Case IH PATRIOT 4440 - (10.500.AA[01]) - DEF TANK MOUNTING (10) - ENGINE
6
5
7
10.500.aa 02
3
9
2
4
8
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84536521

TANK

Complete

1шт.

See Fig 10.500.AA (01) For Service Parts

1шт.

2

BN67653

BUSHING

Tank

2шт.

3

84237916

RUBBER MOUNTING

Adhesive Back

2шт.

4

BN67652

PLATE

Tank Hold Down

2шт.

5

86980427

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

6

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5mm x 28mm x 4 mm, HDN, DOR

4шт.

7

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

8

47444497

STRAP

Securing, DEF Tank

1шт.

9

BN300407

FLANGE NUT

1/2" - 13, G8

2шт.
