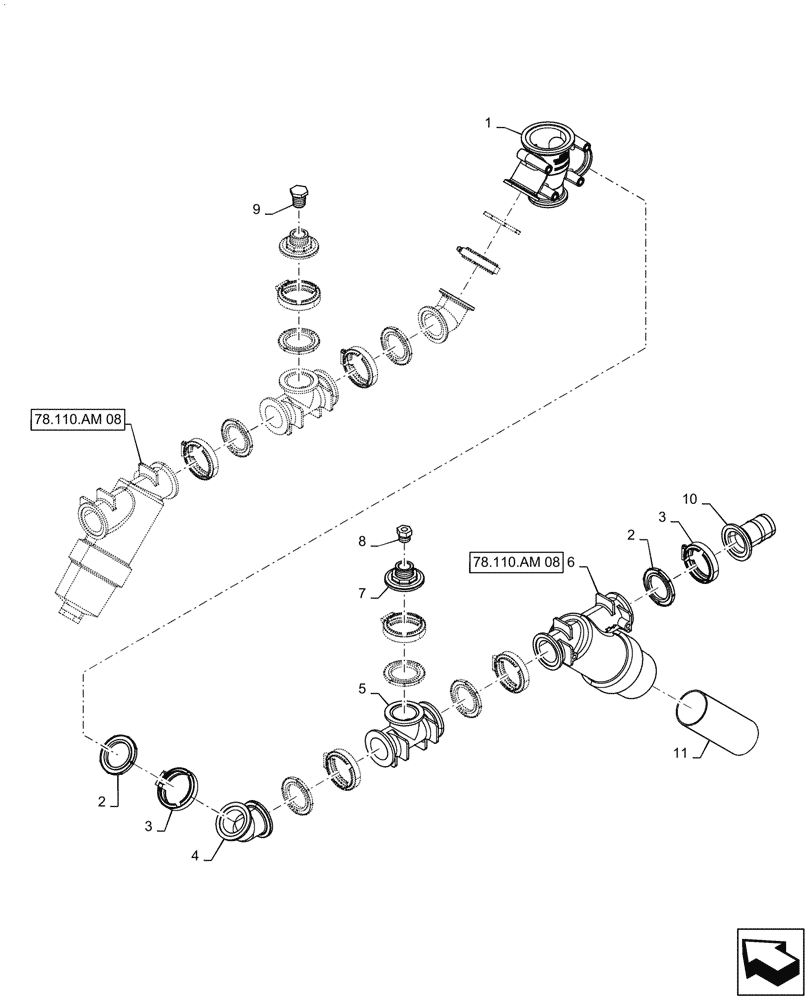

Запчасти Case IH PATRIOT 4440 (78.110.AD[11]) - CENTER SECTION MANIFOLD, 7 SECTION, 120 BOOM, SN YGT042519 & AFTER (78) - SPRAYING

1

47888652

MANIFOLD

Cross

1шт.

2

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

2.2 FLH, EPDM

10шт.

3

BN313773

CLAMP,2" Full Port

10шт.

4

87267540

ELBOW,45 Degree Elbow, 2" Full Port Flange x 2" Full Port Flange, Poly

2шт.

5

BN322550

TEE,2" Full Port Flange x 2" Full Port Flange x 2" Full Port Flange

2шт.

6

47646606

FILTER STRAINER,STRAINER, FILTER, 2.2FLB,

2.2FLB, Y, PP

2шт.

See 78.110.AM 08 For Service

1шт.

7

87623375

PLUG,2" Full Port Flange Plug with 3/4" FPT

2.2FLB W/ .75FP, PP

2шт.

8

BN73550

BUSHING

3/4 x 1/4 Poly

1шт.

9

BN73553

PLUG

3/4 Poly

1шт.

10

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2шт.

11

87633430

SCREEN,50 SS Mesh Screen

2шт.
